| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
62 pcs
|
62 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Acceptable Soldering Methods | |
| Current | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Housing Material | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Rated Voltage | |
| Ratings | |
| Sound Pressure Level | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Tape & Reel | |
| Technology | |
| Terminal Material | |
| Termination | |
| Termination Style | |
| Tone or Pulse Rate | |
| Voltage | |
| Voltage Range | |
| Weight |

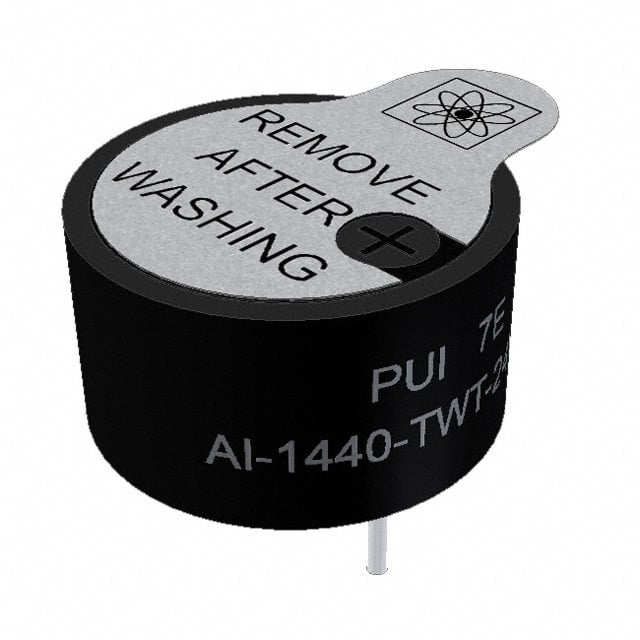

The PUI Audio AI-1440-TWT-24V-2-R is a piezo indicator buzzer designed for continuous tone operation. It is rated at 24V DC with an operating voltage range of 6 to 30V DC and draws 18mA at rated voltage. The buzzer delivers a minimum sound pressure level of 87dB at 10cm with a resonant frequency of 4000Hz ±500Hz.
This through-hole component features a top-firing port and is housed in a Noryl material with tin-plated copper terminals. It is designed for wave soldering and hand soldering and is rated as washable, making it suitable for applications requiring post-solder cleaning.
The buzzer operates over a temperature range of -30°C to +70°C and can be stored between -40°C and +85°C. It is compliant with RoHS and REACH 7c-1 environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.43 | $4.43 |
| 10+ | $3.21 | $3.21 |
| 20+ | $2.86 | $2.86 |
| 50+ | $2.58 | $2.58 |
| 100+ | $2.40 | $2.40 |
| 200+ | $2.14 | $2.14 |
| 500+ | $2.03 | $2.03 |
| 1,000+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 24V DC, with an operating voltage range of 6 to 30V DC.
The minimum sound pressure level is 87dB at 10cm when tested at 24V DC.
The resonant frequency is 4000Hz ±500Hz.
It is a through-hole component with PC pin termination.
Yes, it is rated as washable.
The operating temperature range is -30°C to +70°C.
