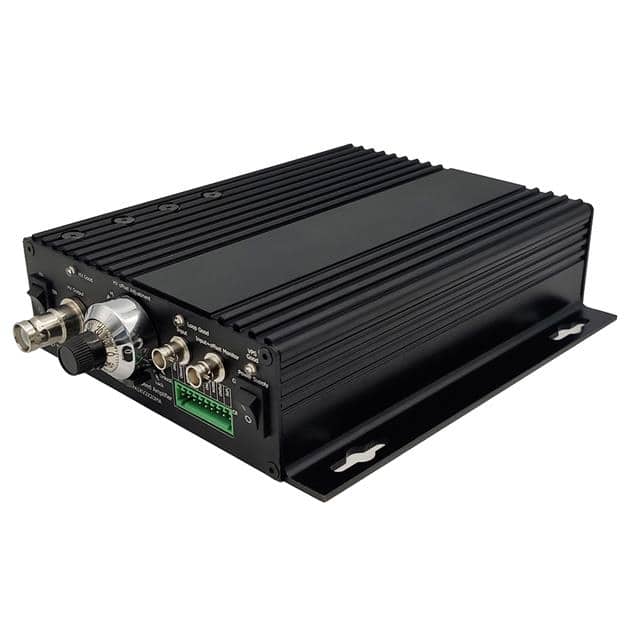

The Analog Technologies AHVAN1KV20MA is a high voltage amplifier designed to convert or amplify low-voltage signals into high-voltage outputs, typically exceeding 1000V. This specific model series, AHVAN, is a single-channel negative output amplifier. It can handle output voltages ranging from -10V to -1kV with a maximum output current of up to 20mA and a slew rate of 100V/µs.
Key electrical specifications include an input signal voltage range of -10V to 10V, a typical power supply input voltage of 24V, and an amplification gain of 200. The amplifier also features an amplification bandwidth of 15kHz and an output voltage noise of 400µVp-p at 0.1Hz to 10Hz. The offset voltage range is -10V to 10V.
Designed for high voltage amplifications, this amplifier is suitable for driving piezos and other high voltage loads. Its compact dimensions are 176.5mm (L) x 147mm (W) x 41.2mm (H), with a weight of 1.0kg.
While specific details on protection features, mounting type, and standard package quantity are not fully detailed in the provided information, the product is listed with a RoHS3 Compliant status and MSL 1 rating.
The AHVAN1KV20MA offers a negative output voltage range from -10V to -1kV.
The maximum output current for the AHVAN1KV20MA is up to 20mA.
The slew rate of the AHVAN1KV20MA is typically 100V/µs.
The input signal voltage range for the AHVAN1KV20MA is -10V to 10V.
The typical power supply input voltage for this amplifier is 24V.
The dimensions of the AHVAN1KV20MA are 176.5mm (Length) x 147mm (Width) x 41.2mm (Height).
The weight of the AHVAN1KV20MA is 1.0kg.
