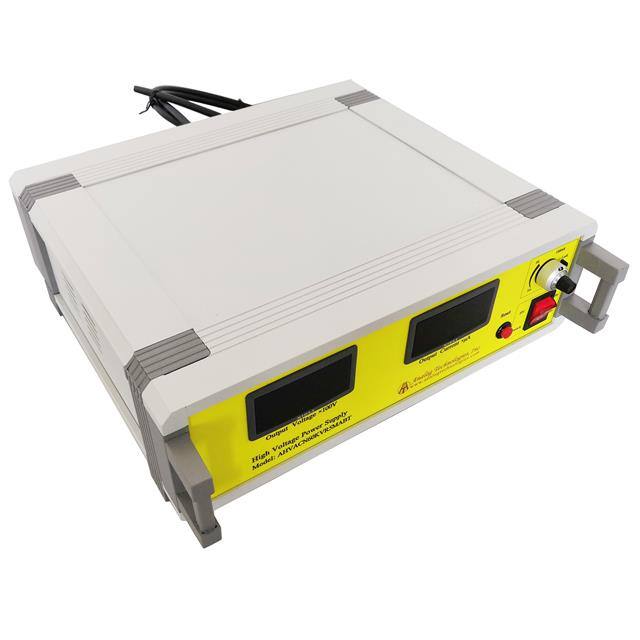

The Analog Technologies AHVACN60KVR5MABT is an enclosed AC-DC high voltage power supply, designed for applications requiring conversion from AC to high DC voltage. This unit is suitable for chassis mounting and features a robust design for industrial and specialized applications.
Key electrical specifications include a high output voltage of 60000V and a substantial current capability of 500A. The power supply operates with an efficiency of 70% and has a wide AC input voltage range of 90-230V. It is equipped with 6 outputs and features like adjustable output and remote on/off capabilities.
The operating temperature range for this power supply is -20°C to 55°C. Its mechanical dimensions are 350.0mm in length, 300.0mm in width, and 125.0mm in height. The unit is designed for reliable performance in demanding environments.
Applications for this high voltage power supply include industrial measurement and control, energy spectrum analysis, and medical equipment such as X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, and test equipment.
The AHVACN60KVR5MABT provides a high DC output voltage of 60000V.
This power supply is rated for a maximum output current of 500A.
The efficiency of the AHVACN60KVR5MABT is 70%.
The operating temperature range for the AHVACN60KVR5MABT is -20°C to 55°C.
The AHVACN60KVR5MABT is designed for chassis mounting.
This power supply features an enclosed type.
The dimensions are 350.0mm in length, 300.0mm in width, and 125.0mm in height.
