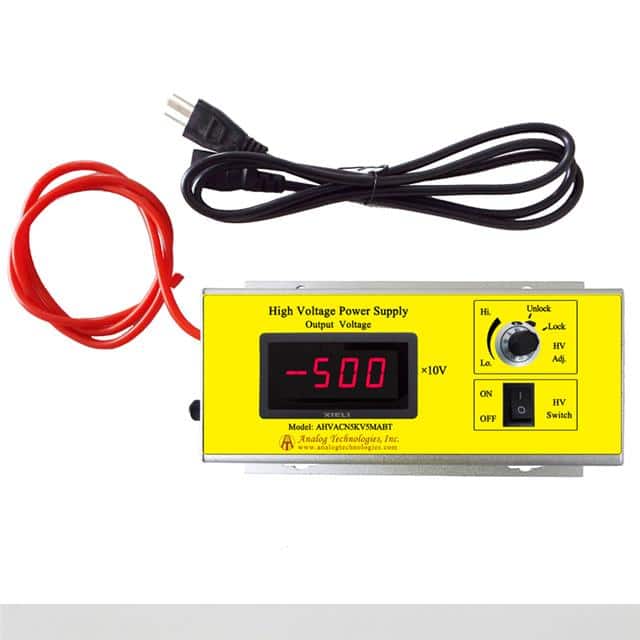

The Analog Technologies AHVACN5KV5MABT is an AC-DC high voltage power supply designed for non-isolated applications. It accepts a wide AC input voltage range of 100 to 240 VAC and provides a stable output voltage of -5kV with a maximum current of 5mA. This unit features high precision, high efficiency (typically 70%), and linear modulation of the output voltage. It also includes overcurrent and short circuit protection, along with a digital display for monitoring the output voltage.
The power supply is suitable for industrial measurement and control, energy spectrum analysis, and medical equipment such as X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research applications. It is designed for chassis mounting and comes in an enclosed type.
Safety precautions are critical when operating this high voltage power supply. It must be connected to ground reliably, and users should avoid touching high voltage wires unless the power is off and all capacitors are discharged. Operation in humid environments is not recommended. The dimensions are 210.0mm x 120.0mm x 50.0mm.
The input voltage range is 100 to 240 VAC.
The output is -5 kV at a maximum current of 5 mA.
Typical efficiency is 70%.
The operating temperature range is -10°C to 55°C.
The converter is enclosed and chassis mount.
Dimensions are 210.0 mm length, 120.0 mm width, and 50.0 mm height.
Typical full load input current is 500 mA.
