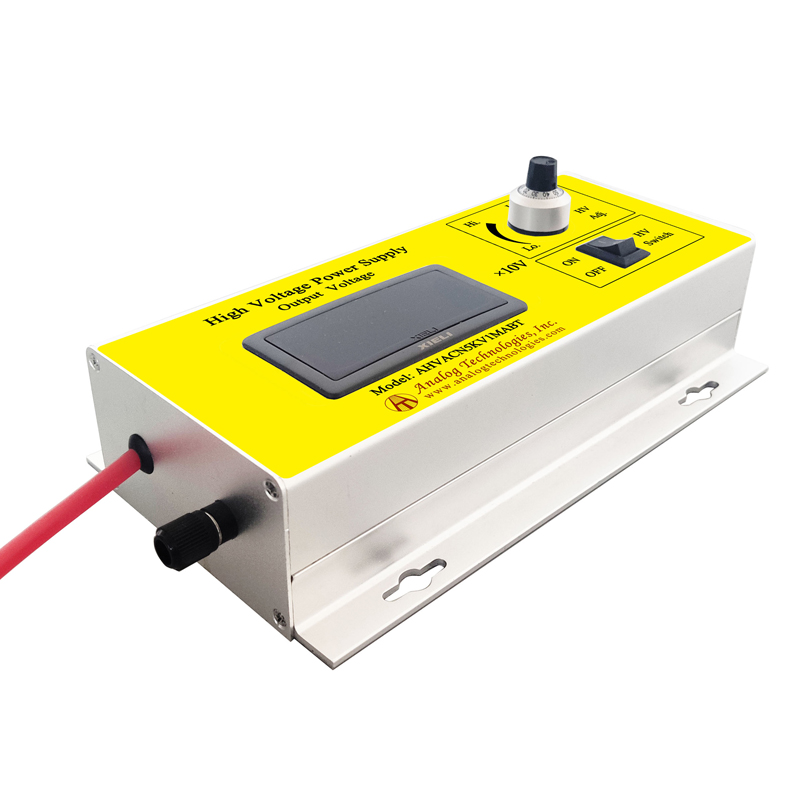

The AHVACN5KV1MABT from Analog Technologies is an AC-DC High Voltage Power Supply designed for non-isolated applications. It converts AC input voltage (100-240V) to a high DC voltage output, capable of reaching up to 5000V with a current rating of 1 mA. The unit features adjustable output and remote on/off capabilities, with an efficiency of 70% and an operating temperature range of -10°C to 55°C.
This power supply is enclosed and designed for chassis mounting, with dimensions of 180.0mm x 120.0mm x 50.0mm. Its features include overcurrent and short circuit protection, along with a digital display for output voltage monitoring. The design prioritizes high precision, high output voltage stability, and linear modulation of the output voltage, making it a low-cost solution for demanding applications.
Applications for the AHVACN5KV1MABT include industrial measurement and control, energy spectrum analysis, and medical equipment such as X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research and academic applications.
The output voltage is 5000V.
The input voltage range is 100-240 VAC.
The output current is 1 mA.
The efficiency is 70%.
The operating temperature range is -10°C to 55°C.
The dimensions are 180.0mm x 120.0mm x 50.0mm.
It supports chassis mount.
