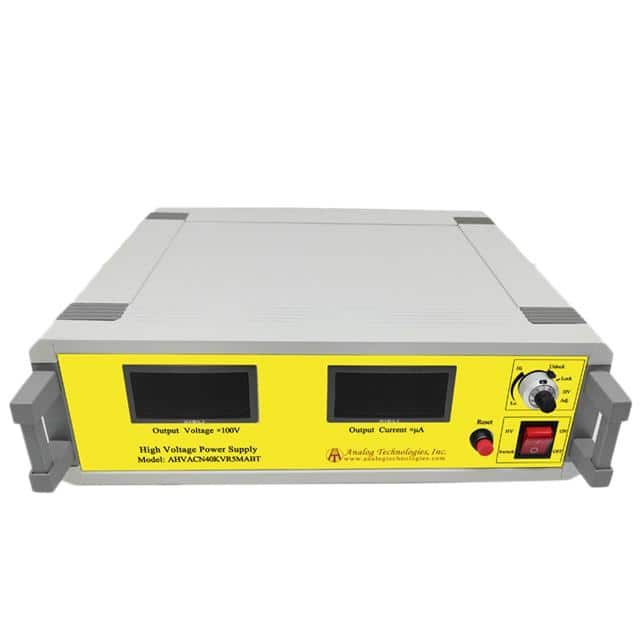

The Analog Technologies AHVACN40KVR5MABT is an enclosed, rack-mount AC-DC high voltage power supply designed for demanding applications. It accepts an AC input voltage range of 90 to 230 VAC and provides a single output with a typical current of 5 mA. The power supply operates with an efficiency of 70% and is suitable for industrial measurement and control, energy spectrum analysis, and medical equipment.
Key electrical specifications include an input voltage regulation ratio of 0.05% and an operating temperature range from -20°C to 55°C. The unit has dimensions of 350.0mm x 300.0mm x 125.0mm. It is designed for applications in ITE (Commercial) environments.
Features such as overcurrent protection, short circuit protection, and a digital display for output voltage enhance its utility. The power supply is designed for AC-DC conversion to high DC voltage, making it suitable for use in X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, and test equipment.
The input voltage range is 90 to 230 VAC.
The typical output current is 5 mA.
The efficiency is typically 70%.
The operating temperature range is -20°C to 55°C.
The dimensions are 350.0mm x 300.0mm x 125.0mm.
It supports rack mount.
