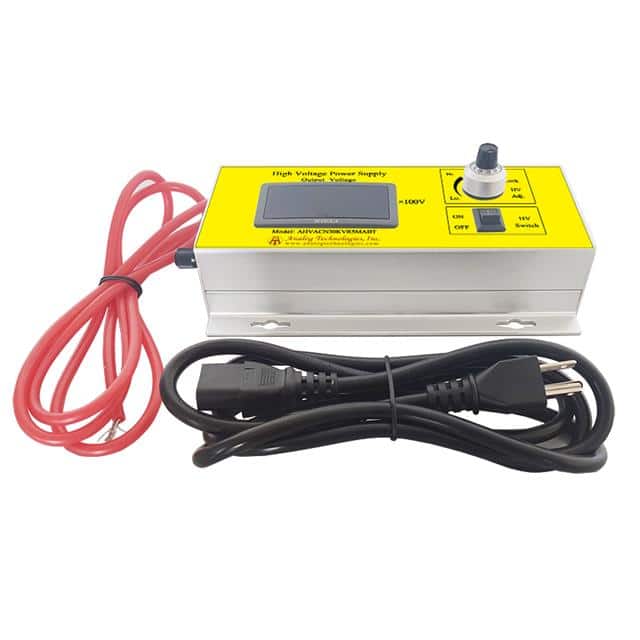

The Analog Technologies AHVACN30KVR5MABT is a high voltage power supply designed for AC-DC conversion, providing a stable high DC voltage output from an AC input. It features high precision, high efficiency (70%), and high output voltage stability with linear modulation capabilities.
This power supply is suitable for various industrial measurement and control, energy spectrum analysis, and medical equipment applications. Its robust design includes overcurrent and short circuit protection, along with a digital display for output voltage monitoring. The unit is enclosed and designed for chassis mounting, with dimensions of 210.0mm x 120.0mm x 50.0mm.
Key features include adjustable output voltage, remote on/off functionality, and a wide operating temperature range from -20°C to 55°C. The input voltage range is 90-230V AC. Safety precautions emphasize reliable grounding and avoiding contact with high voltage wires when powered on.
Applications include semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research academic applications.
The maximum output voltage is 30,000V DC.
The maximum output current is 500A.
It supports 90V AC to 230V AC input.
The typical efficiency is 70%.
-20°C to +55°C.
Enclosed, chassis mount.
210.0mm x 120.0mm x 50.0mm (8.27" x 4.72" x 1.97").
