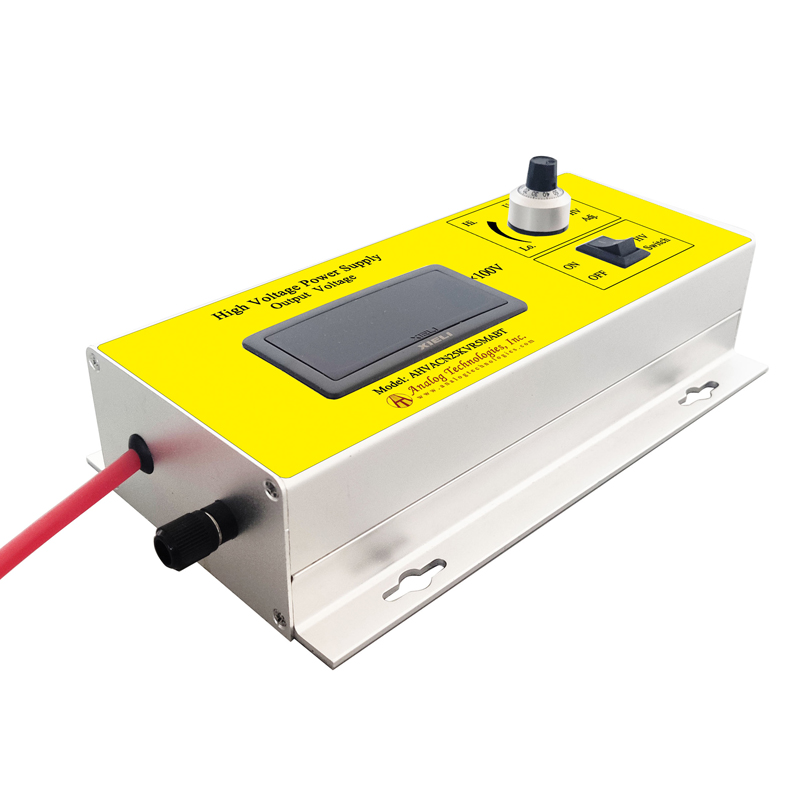

The AHVACN25KVR5MABT from Analog Technologies is a high voltage power supply designed for AC-DC conversion. It accepts an AC input voltage ranging from 90 to 230 VAC and provides a stable, high DC output voltage.
Key features include high precision, high efficiency, and high output voltage stability. The unit also incorporates linear modulation of the output voltage, overcurrent protection, and short circuit protection. A digital display is integrated for monitoring the output voltage.
This power supply is suitable for a wide array of applications, including industrial measurement and control, energy spectrum analysis, and medical equipment such as X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, and test equipment. Its robust design ensures reliability in critical systems.
Safety precautions are paramount when operating this high voltage power supply. It must be connected to ground reliably, and users should avoid touching high voltage wires unless powered off and fully discharged. Operation in humid environments should also be avoided.
The AC input voltage range is from 90 to 230 VAC.
The quiescent input current is typically 100 mA (90-110 mA range), and the full load input current is typically 300 mA (290-310 mA range).
The input voltage regulation ratio is 0.05 % over the input voltage range of 90V to 230V.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
The REACH status is REACH Unaffected.
