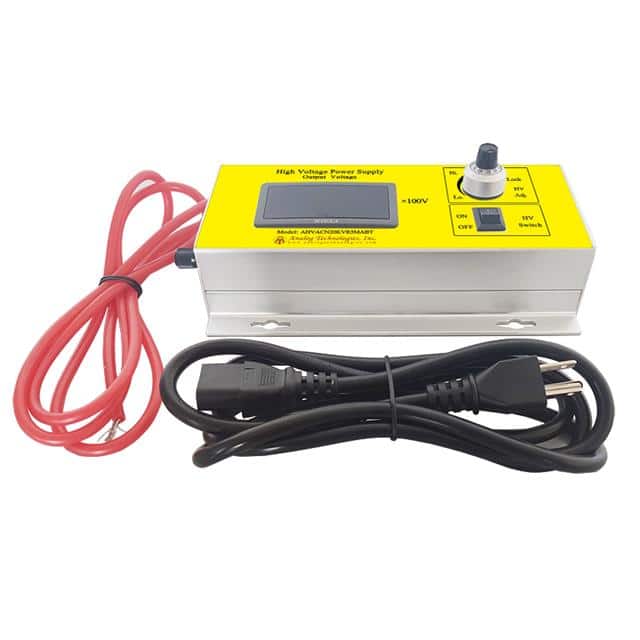

The Analog Technologies AHVACN20KVR5MABT is a non-isolated AC-DC high voltage power supply. It is designed to convert AC input voltage to high DC voltage, making it suitable for a wide range of industrial and medical applications.
Key features include high precision, high efficiency, and high output voltage stability. The unit also offers linear modulation of the output voltage, overcurrent protection, and short circuit protection. A digital display provides clear output voltage readings.
This power supply accepts an AC input voltage range of 90 to 230V. The output voltage can be adjusted via a potentiometer and locked in place to prevent accidental changes. Safety precautions, such as reliable grounding and avoiding contact with high voltage wires, are crucial during operation.
Applications for this power supply include industrial measurement and control, energy spectrum analysis, X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research and academic applications.
The input voltage range for the AHVACN20KVR5MABT is 90 to 230V AC.
The quiescent input current is between 120-140 mA (at 0mA output current), and the full load input current is between 150-250 mA (at 0.5mA output current).
The input voltage regulation ratio is 0.05% for an input voltage range of 90V to 230V.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH status is REACH Unaffected.
