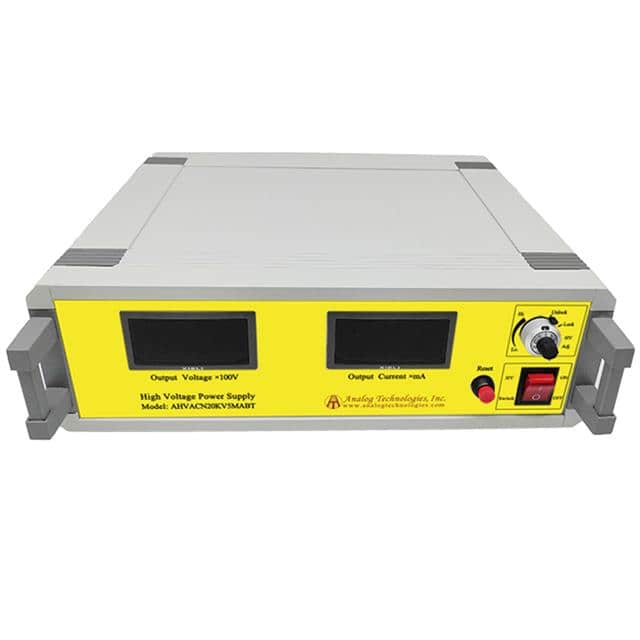

The Analog Technologies AHVACN20KV5MABT is an enclosed AC-DC high voltage power supply with a nominal output voltage of 20kV. It accepts an AC input voltage range of 110 to 220 VAC and provides a stable output current of 5 mA. The power supply operates efficiently at 70% and is designed for industrial measurement and control, energy spectrum analysis, and medical equipment.
This unit features overcurrent and short circuit protection, along with a digital display for output voltage monitoring. Its physical dimensions are 350.0mm in length, 300.0mm in width, and 125.0mm in height. The operating temperature range is from -20°C to 55°C, making it suitable for various environmental conditions. The power supply is designed for rack mounting.
Applications for the AHVACN20KV5MABT include X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research and academic applications. It is built for high precision and high output voltage stability.
The input voltage range is 110 to 220 VAC.
The output current is 5 mA.
The operating temperature range is -20°C to 55°C.
It supports rack mount type.
The dimensions are 350.0mm x 300.0mm x 125.0mm.
