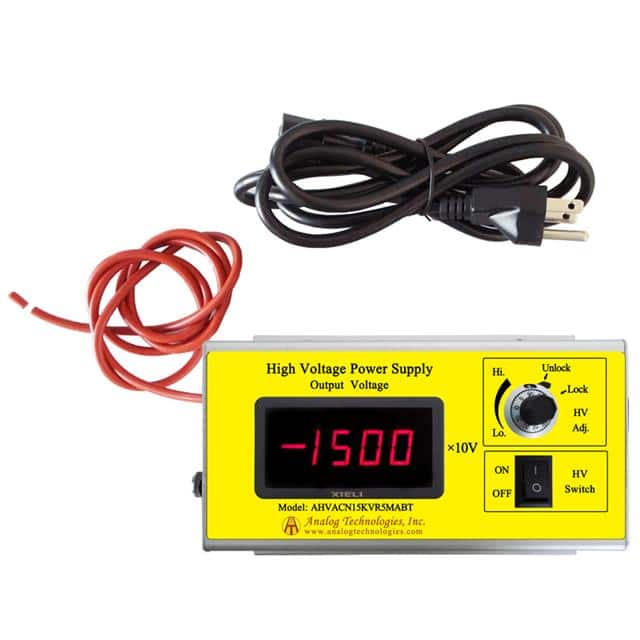

The AHVACN15KVR5MABT from Analog Technologies is a high-voltage power supply designed for AC-DC conversion from AC voltage to high DC voltage. It features high precision, high efficiency, and high output voltage stability, with linear modulation of the output voltage. The unit includes overcurrent protection, short circuit protection, and a digital display for output voltage monitoring.
With an AC input voltage range of 90-230V, the AHVACN15KVR5MABT is suitable for various industrial and academic applications. Its quiescent input current is typically 80-100 mA, and full load input current is 190-210 mA. The input voltage regulation ratio is a mere 0.05% over the specified input range.
This power supply is widely used in industrial measurement and control, energy spectrum analysis, and medical equipment such as X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research applications. Safety precautions are crucial when operating this high-voltage device, including reliable grounding and avoiding humid environments.
The physical dimensions are not specified, but the product has a shipping weight of 3 lbs. It is designed for robust performance in demanding environments.
The AHVACN15KVR5MABT accepts an AC input voltage range of 90 to 230V.
The quiescent input current is typically between 80 mA and 100 mA when the output current is 0 mA.
The full load input current is typically between 190 mA and 210 mA when the output current is 0.5 mA.
The input voltage regulation ratio is 0.05% for input voltage variations between 90V and 230V.
The AHVACN15KVR5MABT is listed as RoHS3 Compliant, MSL 1 Unlimited, and REACH Unaffected.
