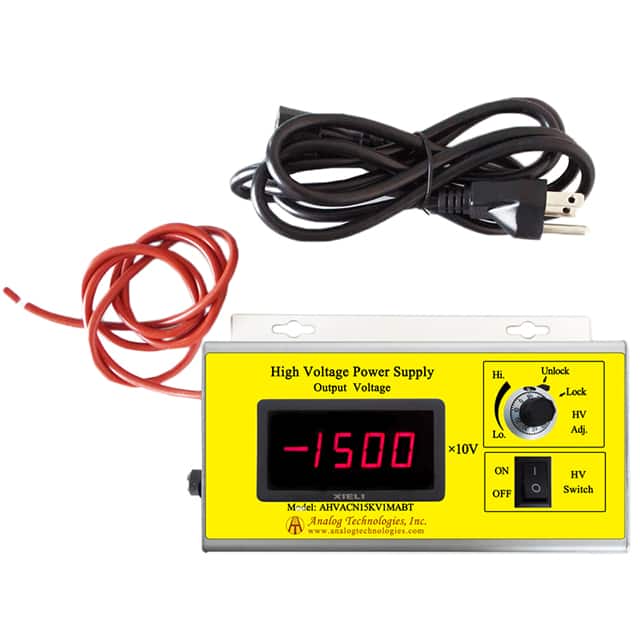

The Analog Technologies AHVACN15KV1MABT is a high voltage AC-DC power supply designed for converting AC input to high DC voltage. It operates with an AC input range of 90-230V and provides a stable output voltage of up to 15000V.
Key features include high precision, high efficiency (70%), and linear modulation of the output voltage. It also offers overcurrent and short circuit protection, along with a digital display for monitoring the output voltage. The unit is designed for chassis mounting and comes in an enclosed type.
This power supply is suitable for various industrial measurement and control applications, energy spectrum analysis, and medical equipment. Its applications include X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and academic research.
The physical dimensions are 180.0mm in length, 120.0mm in width, and 50.0mm in height. The operating temperature range is -20°C to 55°C.
The maximum output voltage is 15000V.
The AC input voltage range is 90V to 230V.
The efficiency is 70%.
The operating temperature range is -20°C to 55°C.
It is designed for chassis mount installation.
The dimensions are 180.0mm x 120.0mm x 50.0mm.
