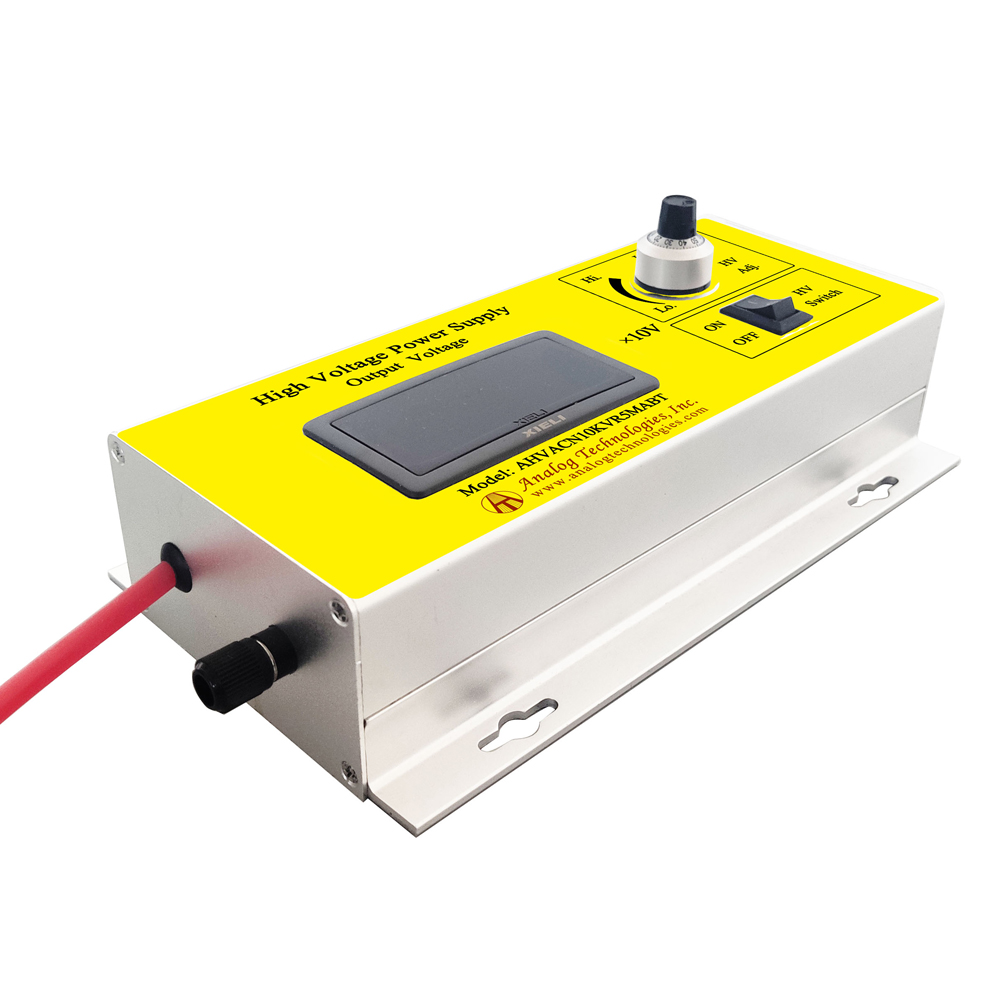

The Analog Technologies AHVACN10KVR5MABT is a non-isolated AC-DC high voltage power supply designed for applications requiring precise high voltage conversion. It features a high output voltage of 10kV and a maximum output current of 0.5mA, with an efficiency of 70% typical.
This power supply accepts a wide AC input voltage range of 90-230V. It is built with features such as overcurrent protection, short circuit protection, and a digital display for output voltage monitoring. The unit is enclosed and designed for chassis mounting.
Key specifications include an operating temperature range of -20°C to 55°C. The dimensions are 180.0mm in length, 120.0mm in width, and 50.0mm in height. It is suitable for industrial measurement and control, energy spectrum analysis, and medical equipment applications.
The AHVACN10KVR5MABT has a nominal output voltage of 10000V.
The maximum output current is 0.5mA.
The input voltage range is 90-230V AC.
The typical efficiency is 70%.
The operating temperature range is -20°C to 55°C.
It is a chassis mount type.
The dimensions are 180.0mm x 120.0mm x 50.0mm.
