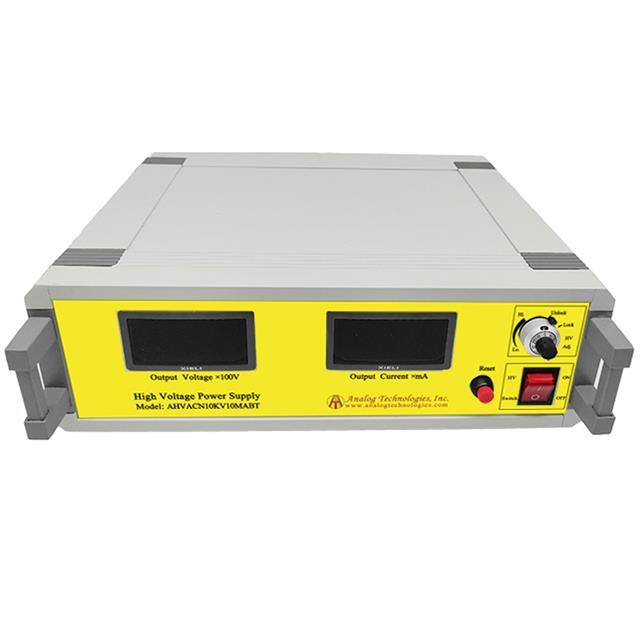

The Analog Technologies AHVACN10KV10MABT is an AC-DC high voltage power supply designed for applications requiring precise high voltage conversion. It accepts AC input voltages ranging from 90 to 230V and provides a stable DC output.
Key features include high precision, high efficiency (70%), and high output voltage stability. The output voltage is linearly modulated and can be adjusted via a potentiometer. Safety features include overcurrent and short circuit protection. The unit also includes a digital display for monitoring the output voltage.
This power supply is suitable for industrial measurement and control, energy spectrum analysis, and medical equipment such as X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, and analytical instrumentation. Its enclosed, rack-mount design with dimensions of 350.0mm x 300.0mm x 125.0mm makes it suitable for integration into various systems.
Operating temperature ranges from -20°C to 55°C, ensuring reliable performance in diverse environments. The power supply is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
90 to 230 VAC.
10 kV.
-20°C to 55°C.
Rack mount, enclosed.
10 mA.
70%.
350.0mm x 300.0mm x 125.0mm (13.78" x 11.81" x 4.92").
