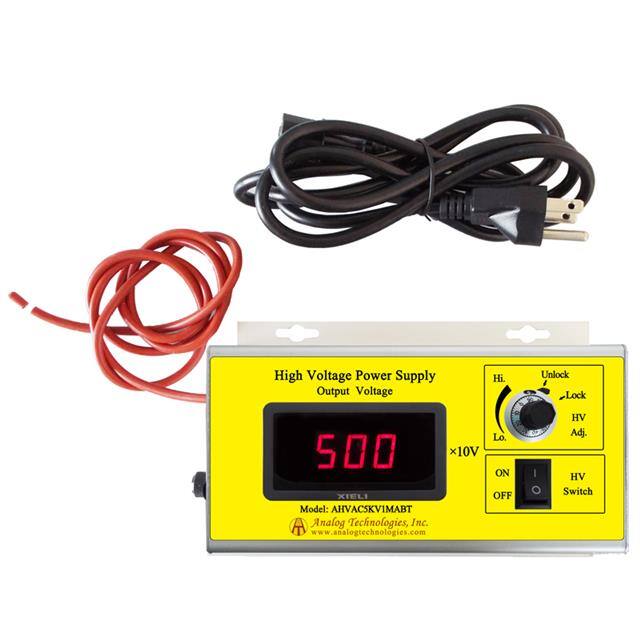

The AHVAC5KV1MABT from Analog Technologies is a high voltage AC-DC power supply designed for converting AC input voltages to high DC voltages. It features high precision, high efficiency, and high output voltage stability with linear modulation. The unit accepts a wide AC input range of 100 to 240 VAC.
Key features include overcurrent protection, short circuit protection, and a digital display for monitoring the output voltage. The output voltage is determined by multiplying the digital display reading by 10V. A potentiometer lock is included to prevent accidental changes to the set output voltage.
This high voltage power supply is suitable for various industrial measurement and control systems, energy spectrum analysis, and medical equipment. Applications include X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research applications.
Safety precautions are essential when operating this high voltage power supply. It must be reliably connected to ground, and the high voltage wire should not be touched unless the power is off and capacitors are fully discharged. Allow 5 minutes for internal capacitors to discharge after power off. Avoid operating in humid environments and ensure proper insulation to prevent electric shock.
The AHVAC5KV1MABT accepts an AC input voltage range of 100 to 240 VAC.
The quiescent input current is between 22 mA and 32 mA when the output current is 0mA.
The full load input current is between 80 mA and 90 mA when the output current is 1.0mA.
The input voltage regulation ratio is a maximum of 0.5% for an input voltage range of 100V to 240V.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
The REACH status is REACH Unaffected.
