| Category | |
| Manufacturer Name | |
| Dimensions | |
| Input Voltage | |
| Output Current | |
| Output Voltage | |
| SVHC Present |

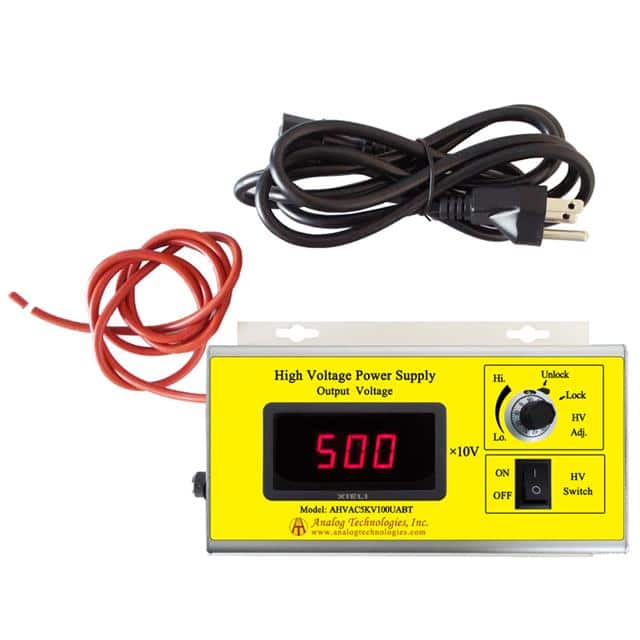

The Analog Technologies AHVAC5KV100UABT is a non-isolated AC-DC high voltage power supply. It is designed to convert AC input voltage to a high DC output voltage.
Key features include high precision, high efficiency, and high output voltage stability with linear modulation. The unit provides overcurrent and short circuit protection, along with a digital display for output voltage. The output voltage is adjustable via a potentiometer, with a locking mechanism to prevent accidental changes. The output voltage is calculated as the digital display reading multiplied by 10V.
This power supply is suitable for applications requiring high DC voltages, such as industrial measurement and control, energy spectrum analysis, and medical equipment like X-ray machines. It is also used in vacuum/plasma processing, semiconductor fabrication, analytical instrumentation, and test equipment.
The power supply has dimensions of 180x120x50mm and accepts an input voltage range of 90-230V AC. It has a maximum output current of 0.1mA and an internal current limit range of 80-100μA.
The AHVAC5KV100UABT provides a 5kV DC output voltage.
The input voltage range for the AHVAC5KV100UABT is 90 to 230V AC.
The maximum output current for the AHVAC5KV100UABT is 0.1mA.
The dimensions of the AHVAC5KV100UABT are 180 x 120 x 50 mm.
The current limit range for the AHVAC5KV100UABT is 80 to 100μA.
