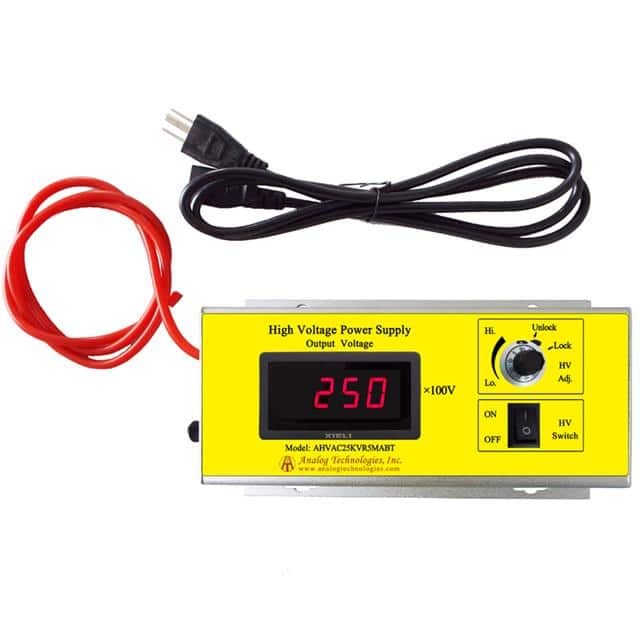

The AHVAC25KVR5MABT from Analog Technologies is an enclosed AC-DC high voltage power supply designed for applications requiring precise high voltage conversion. It accepts a wide AC input range of 90-230V and provides a stable, adjustable DC output voltage up to 25kV with a maximum current of 0.5mA. The unit features high precision, high efficiency (70%), and linear modulation of the output voltage, making it suitable for demanding industrial and scientific applications.
This power supply is built for chassis mounting and features overcurrent and short circuit protection. Its compact dimensions of 210.0mm x 120.0mm x 50.0mm make it adaptable to various system integrations. The digital display allows for easy monitoring of the output voltage, and a potentiometer lock prevents accidental adjustments.
Applications for the AHVAC25KVR5MABT include industrial measurement and control, energy spectrum analysis, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research applications. Safety precautions, such as reliable grounding and avoiding humid environments, are crucial when operating this high voltage equipment.
The AHVAC25KVR5MABT provides a maximum output voltage of 25kV.
The input voltage range for the AHVAC25KVR5MABT is 90 to 230 VAC.
The maximum output current for the AHVAC25KVR5MABT is 0.5mA.
The operating temperature range is -20°C to 55°C.
The AHVAC25KVR5MABT supports chassis mounting.
Yes, the AHVAC25KVR5MABT features adjustable output.
