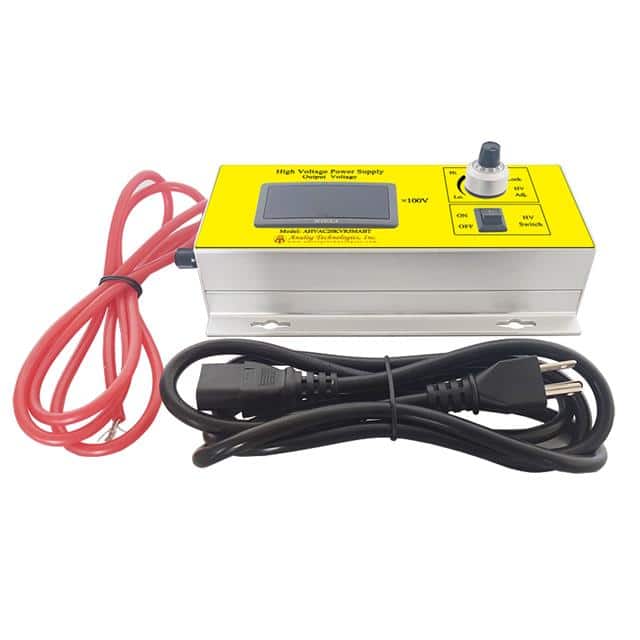

The Analog Technologies AHVAC20KVR5MABT is a high-voltage AC-DC power supply engineered for precision and efficiency. It converts AC input voltages ranging from 90V to 230V into a stable high DC voltage output of up to 20kV.
Key features include high precision, high efficiency, and linear modulation of the output voltage. The unit also incorporates overcurrent and short circuit protection, along with a digital display for monitoring the output voltage. Its compact dimensions of 210 x 120 x 50 mm make it suitable for integration into various systems.
This power supply is well-suited for demanding applications such as industrial measurement and control, energy spectrum analysis, and medical equipment like X-ray machines and diagnostic systems. It is also used in semiconductor fabrication, analytical instrumentation, and test equipment.
The AHVAC20KVR5MABT requires a reliable ground connection and should be operated with caution due to the high voltages involved. Safety precautions outlined in the datasheet must be followed to prevent electrical shock.
The input voltage range is 90 to 230 V AC.
The output voltage is 20 kV DC.
The maximum output current is 0.5 mA.
The converter delivers 10 watts of power.
The input voltage regulation ratio is 0.05% typical.
The dimensions are 210 x 120 x 50 mm.
The quiescent input current is typically 130 mA.
