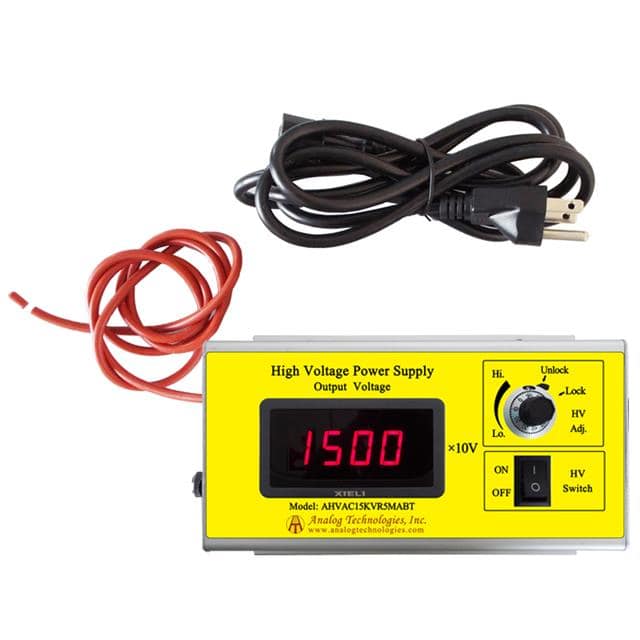

The Analog Technologies AHVAC15KVR5MABT is a high voltage power supply designed for AC-DC conversion. It accepts an AC input voltage range of 90 to 230V.
Key features include high precision, high efficiency, and stable output voltage with linear modulation. The unit also incorporates overcurrent protection, short circuit protection, and a digital display for monitoring the output voltage. The output voltage is determined by the reading on the digital display multiplied by 10V.
This power supply is suitable for various industrial and medical applications. These include industrial measurement and control, energy spectrum analysis, X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research applications.
Safety precautions are essential when operating this high voltage power supply. It must be reliably grounded, and users should avoid touching high voltage wires unless the power is off and capacitors are discharged. Operation in humid environments is not recommended.
The AC input voltage range is 90 to 230 V AC.
The quiescent input current is between 80 and 100 mA when the output current is 0mA.
The full load input current is between 190 and 210 mA when the output current is 0.5mA.
The input voltage regulation ratio is 0.05 % for input voltage changes between 90V and 230V.
The power supply must be reliably grounded. Do not touch high voltage wires unless powered off and capacitors are discharged. Avoid humid environments.
