| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

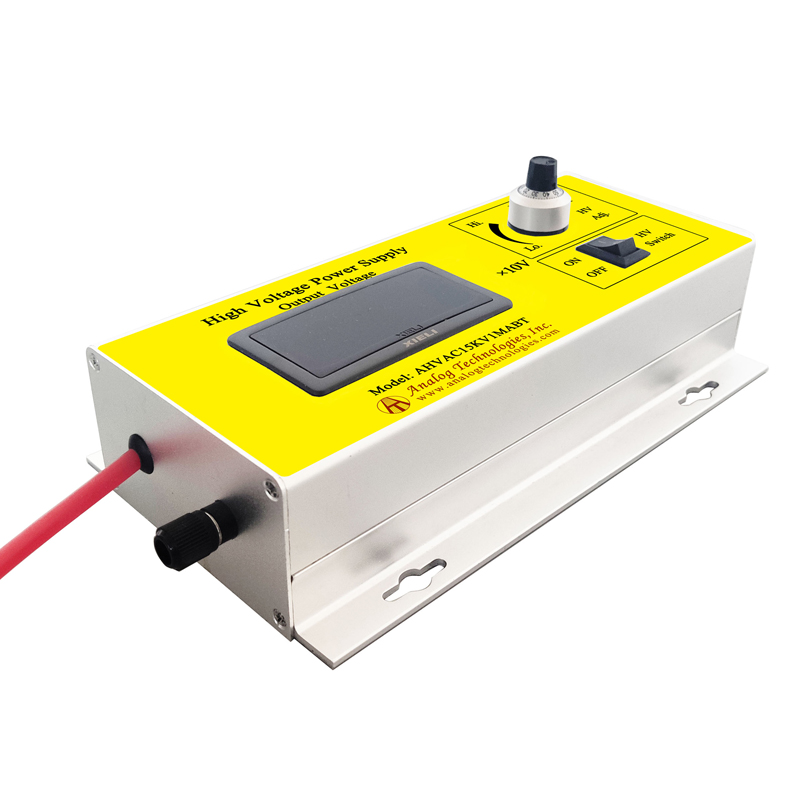

The AHVAC15KV1MABT from Analog Technologies is an enclosed, chassis mount AC-DC high voltage power supply. It is designed for converting AC input voltage to high DC voltage, making it suitable for industrial measurement and control, energy spectrum analysis, and medical equipment.
Key electrical specifications include an adjustable output voltage up to 15000V with a maximum output current of 1mA. The power supply operates with an efficiency of 70% and features linear modulation of the output voltage. It has an AC input voltage range of 90-230V.
This unit is built for reliability, featuring overcurrent and short circuit protection, along with a digital display for output voltage monitoring. The operating temperature range is from -20°C to 55°C. Its physical dimensions are 180.0mm in length, 120.0mm in width, and 50.0mm in height.
Applications for this high voltage power supply include X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research applications.
90-230V AC.
15kV, adjustable via potentiometer.
1mA.
-20°C to 55°C.
Chassis mount, enclosed.
70%.
