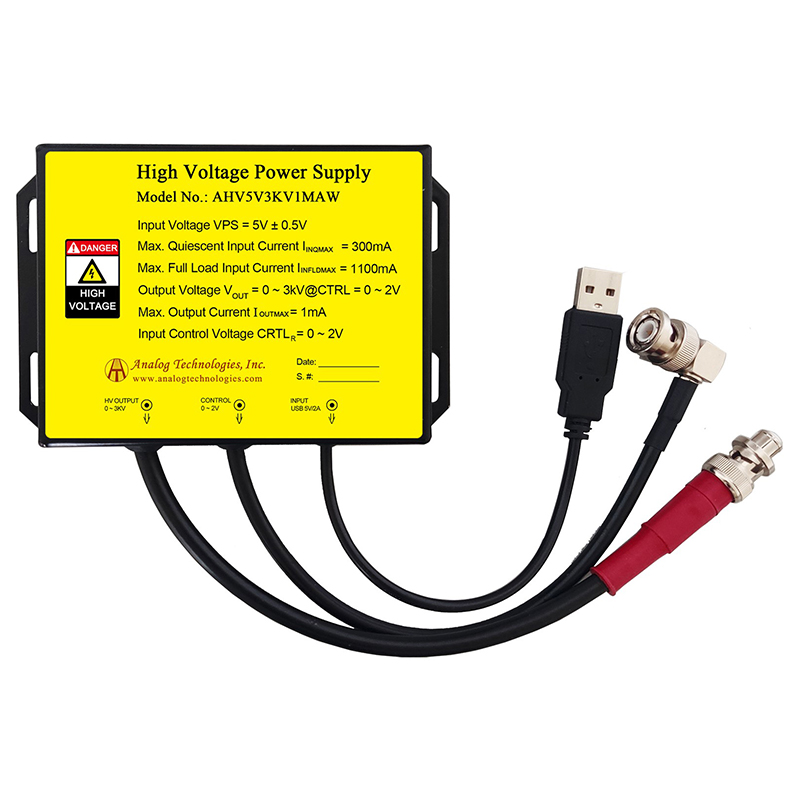

The AHV5V3KV1MAW from Analog Technologies is a high-voltage power module designed for DC-DC conversion from a low input voltage to a high output voltage. It features low power consumption, high precision, and linear regulation, making it suitable for demanding applications.
Key electrical specifications include an input voltage range of 4.5V to 5.5V, with a maximum output current of 1mA. The output voltage can reach up to 3000V. Load regulation is specified at 3 MΩ, and input voltage regulation is typically 0.1% over the specified input range.
This power module is designed for easy control and installation, with built-in overload and short circuit protection. The description highlights the distinction between input (USB port), regulation wire (BNC port), and output (RG95 coaxial cable).
Applications for this high voltage power supply include X-ray machines, laser systems, spectral analysis, ion beam deposition, electron beam evaporation, sputtering, and high voltage testing such as CRT monitor tests and H-POT tests. It is also used in particle accelerators and nanotechnology applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 3000V.
The input voltage range is 4.5V to 5.5V.
The maximum output current is 1mA.
Applications include X-ray machines, laser power supplies, spectral analysis, ion beam deposition, and high voltage testing.
Yes, it features overload and short circuit protection.
