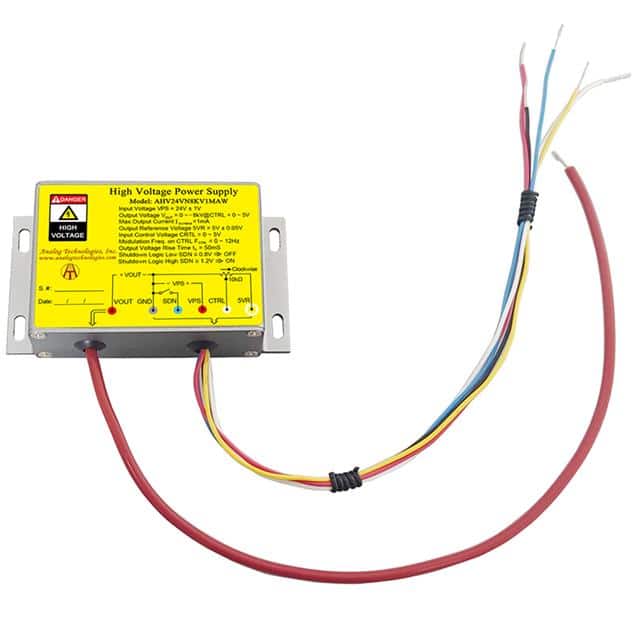

The Analog Technologies AHV24VN8KV1MAW is an enclosed, chassis mount DC DC converter module capable of generating high voltages. It operates with an input voltage of 24V ± 1V and offers an adjustable output voltage ranging from 0V to -8kV, controlled via a 0-5V input signal. The maximum output current is limited to 1mA.
This power supply module features electronic shutdown control and is designed with zero EMI emissions and good heat sinking due to its metal enclosure. Its operating temperature range is from -10°C to 55°C.
Applications for this module include scientific research equipment such as X-ray machines, spectral analysis, and particle accelerators, as well as semiconductor manufacturing equipment and coating processes like electrospinning and magnetron sputtering.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be adjusted from 0V to -8kV.
The maximum output current is 1mA.
The input power voltage is 24V ± 1V.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0 to 5V.
The dimensions are 104.4mm x 66.8mm x 27.9mm.
