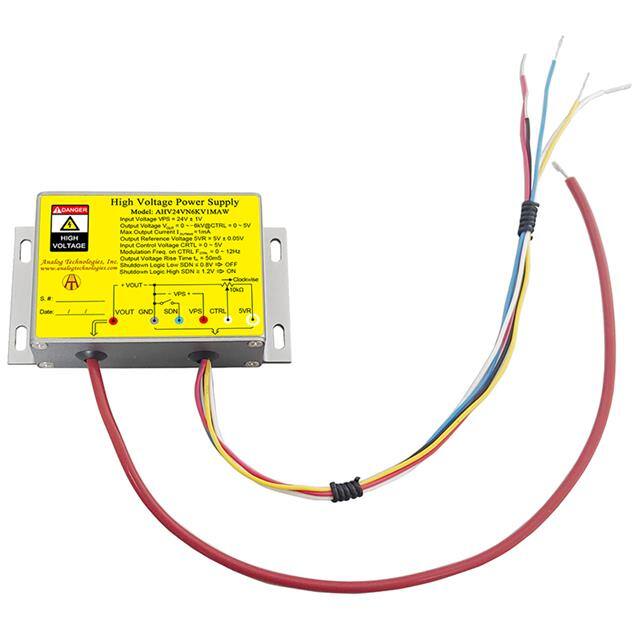

The Analog Technologies AHV24VN6KV1MAW is a high voltage DC-DC converter module designed for applications requiring precise high voltage generation. It operates with an input power voltage of 24V ± 1V and offers an adjustable output voltage ranging from 0V to -6kV, controlled via a 0-5V input control voltage.
Key electrical specifications include a maximum output current of 1mA and a reference voltage of 5V ± 0.05V. The module has an input current range of 80mA to 360mA and an efficiency of 70%. It also features electronic shutdown control for added safety and flexibility.
This power module is enclosed and designed for chassis mounting, with dimensions of 104.4mm x 66.8mm x 27.9mm. It operates within a temperature range of -10°C to 55°C. The metal enclosure provides zero EMIs and good heat sinking.
Applications for this high voltage power supply include scientific research equipment such as X-ray machines, spectral analysis, particle accelerators, and semiconductor manufacturing equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be adjusted from 0V to -6kV.
The input power voltage is 24V ± 1V.
The maximum output current is 1mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
This power module requires chassis mounting.
