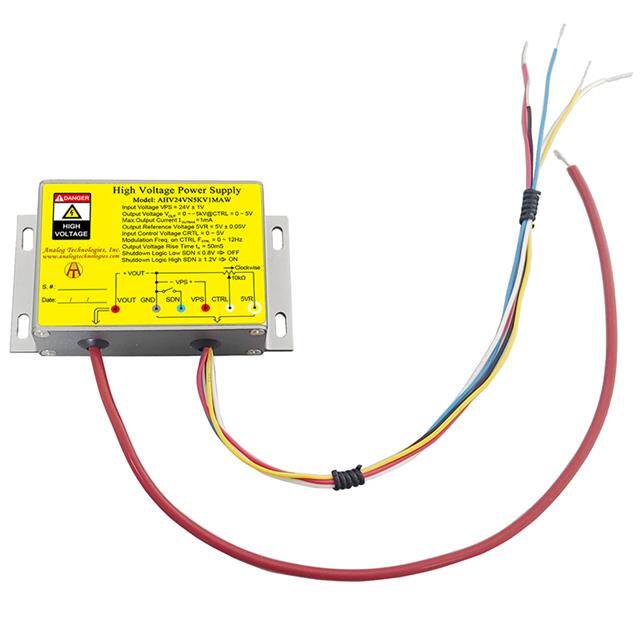

The Analog Technologies AHV24VN5KV1MAW is a high voltage power supply module designed for DC-DC conversion from low voltage to high voltage. It operates with an input voltage of 24V ± 1V and can deliver an output voltage from 0 to -5kV, modulated by an input control voltage of 0 to 5V. The maximum output current is 1mA.
This power module is suitable for applications requiring high voltage, such as X-ray machines, spectral analysis, and semiconductor manufacturing equipment. It features electronic shutdown control and full span modulation on the output voltage. The unit is enclosed and designed for chassis mounting.
Key electrical specifications include an input current range of 65mA to 400mA, a reference voltage of 5V ± 0.05V, and an efficiency of 70%. The operating temperature range is -10°C to 55°C. The dimensions are 104.4mm x 66.8mm x 27.9mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can range from 0 to -5kV.
The input power voltage is 24V ± 1V.
The maximum output current is 1mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0 to 5V and features full span modulation.
It uses chassis mount.
