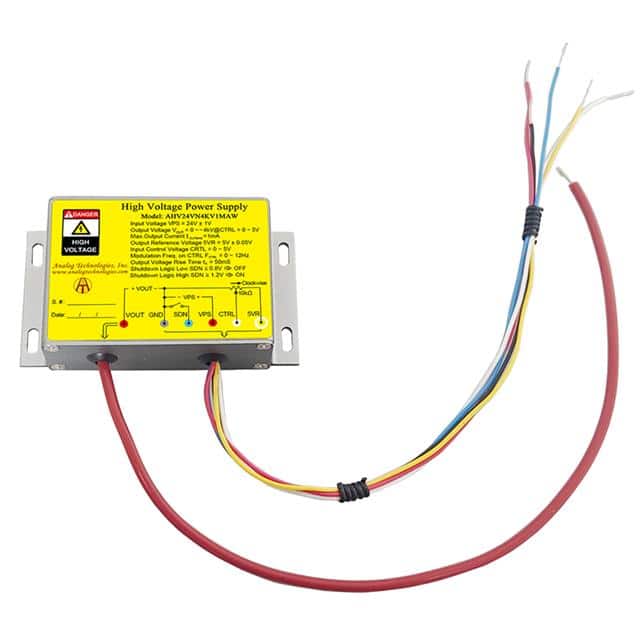

The Analog Technologies AHV24VN4KV1MAW is a high voltage, non-isolated DC DC converter module. It is designed for applications requiring a conversion from a low input voltage to a high output voltage. The module accepts an input power voltage of 24V ± 1V and has an input current range of 50mA to 240mA.
The output voltage can be precisely controlled from 0V to -4kV using the CTRL input, which accepts a 0V to 5V signal. The maximum output current is limited to 1mA. A reference voltage of 5V ± 0.05V is also provided. The module features electronic shutdown control and full span modulation on the output voltage.
With dimensions of 104.4mm x 66.8mm x 27.9mm, this converter is designed for chassis mounting and operates within an ambient temperature range of -10°C to 55°C. Its efficiency is rated at 70%.
Applications for this high voltage power supply include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be set between 0V and -4kV.
The input power voltage is 24V ± 1V.
The maximum output current is 1mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
