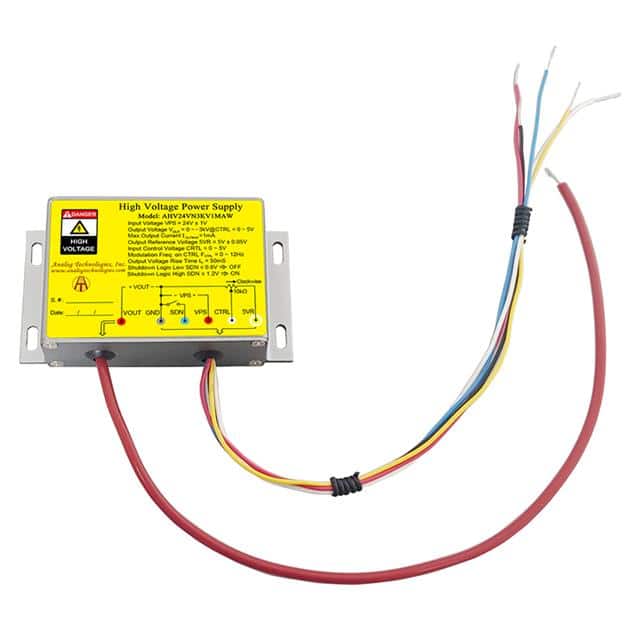

The Analog Technologies AHV24VN3KV1MAW is a high voltage, non-isolated DC-DC converter module. It is designed to convert a low input voltage of 24V (±1V) to a high output voltage ranging from 0V to -3kV. The module has a maximum output current of 1mA and an input control voltage range of 0V to 5V, allowing for modulation of the output voltage.
Key electrical specifications include an input current range of 35mA to 180mA and a reference voltage of 5V (±0.05V). The converter operates with an efficiency of 70% and has an operating temperature range of -10°C to 55°C.
This power module is enclosed and designed for chassis mounting. Its dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height. The AHV24VN3KV1MAW is suitable for various applications requiring high voltage DC power sources, such as in scientific research equipment, X-ray machines, and semiconductor manufacturing equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23V to 25V.
The output voltage can range from 0 to -3kV, with a maximum output current of 1mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
The dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height.
It is a chassis mount type.
