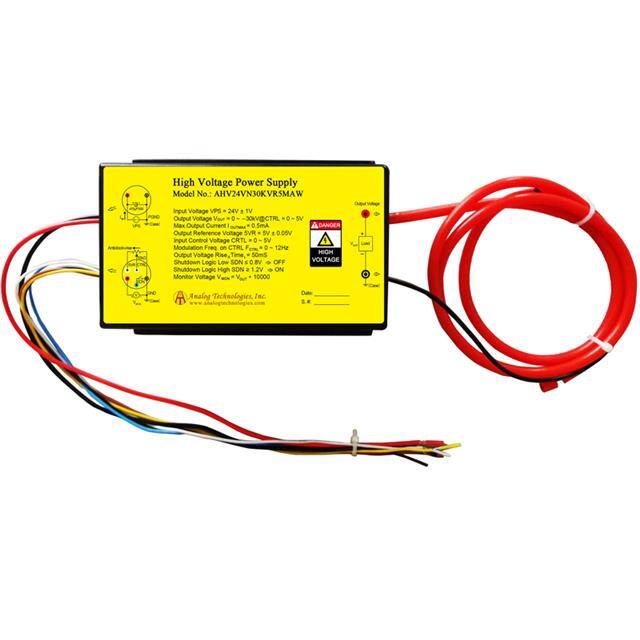

This Analog Technologies AHV24VN30KVR5MAW is a high voltage DC DC converter module designed for converting low input voltages to high output voltages. It operates with a nominal input voltage of 24V and can achieve an output voltage of up to 30kV. The module offers high precision, linear regulation, and a full modulation range on its output voltage. It also includes a shutdown feature for power management.
The converter is enclosed in a heavy-duty metal enclosure, which provides EMI shielding, making it suitable for noise-intensive environments. Its applications span industrial measurement and control, energy spectrum analysis, and medical equipment such as X-ray machines, vacuum/plasma processing, semiconductor fabrication, analytical instrumentation, and test equipment.
Key electrical specifications include a typical efficiency of 70% and an output current of 500µA. The operating temperature range is from -20°C to 55°C. The unit is chassis mountable and enclosed.
Detailed lead identification is provided: input 24V (red), ground (black), regulation (white), reference voltage 5V (yellow), shutdown (blue), output high-tension (thick red), and voltage monitor (brown). The output voltage can be monitored by measuring a specific port, where the value multiplied by 10000 equals the output voltage.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical input voltage is 24V, with a minimum of 23V and a maximum of 25V.
The AHV24VN30KVR5MAW converts an input DC voltage of 24V to an output voltage of 30kV.
The typical efficiency of the AHV24VN30KVR5MAW is 70%.
The operating temperature range is -20°C to 55°C.
The dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height.
The output current is 500µA.
The AHV24VN30KVR5MAW is designed for chassis mounting.
