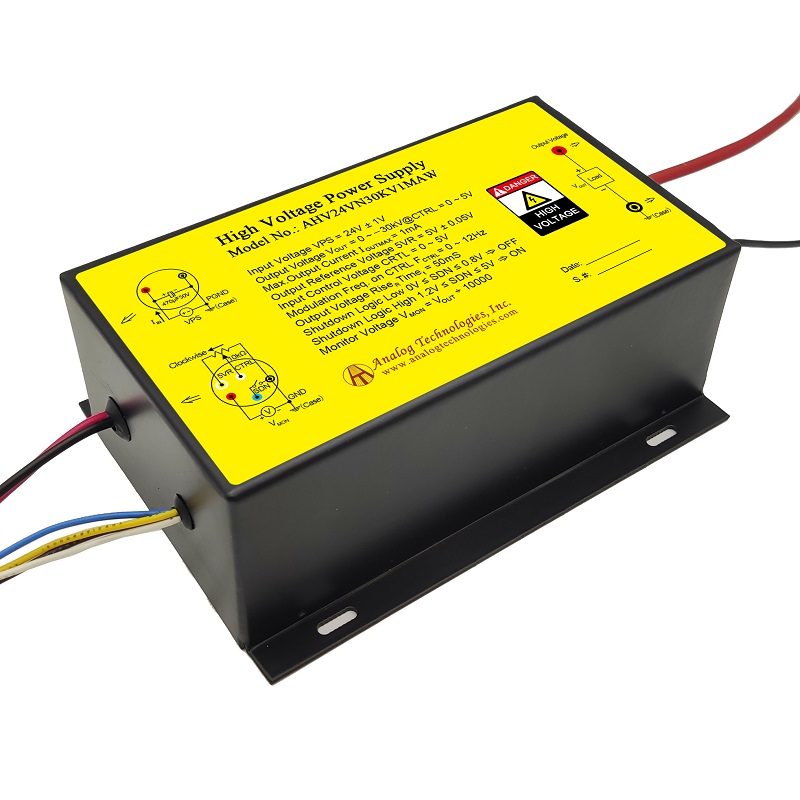

The Analog Technologies AHV24VN30KV1MAW is a high-voltage DC-DC converter module designed for applications requiring precise voltage conversion from low to high voltage levels. It operates with a nominal input voltage of 24V and delivers a regulated output voltage of -30kV.
This enclosed converter offers a full modulation range on its output voltage and utilizes linear regulation. It has an efficiency rating of 70% and is suitable for industrial measurement and control, energy spectrum analysis, and medical equipment. The module is shielded by a heavy-duty metal enclosure to block electromagnetic interference (EMI), making it suitable for noise-intensive environments.
The AHV24VN30KV1MAW is designed for chassis mounting and has dimensions of 140.0mm x 100.0mm x 55.0mm. It features a shutdown mode controllable via a logic signal. The output voltage can be monitored by measuring a dedicated output voltage monitor port, where the measured voltage multiplied by 10000 equals the actual output voltage.
Applications for this power module include X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research applications. It is also used in ion beam deposition, electron beam evaporation, sputtering, and high voltage capacitance testing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical input voltage is 24V, with a range of 23V to 25V.
The output voltage is -30kV.
The efficiency is 70%.
The operating temperature range is -20°C to 55°C.
It is a chassis mount type.
