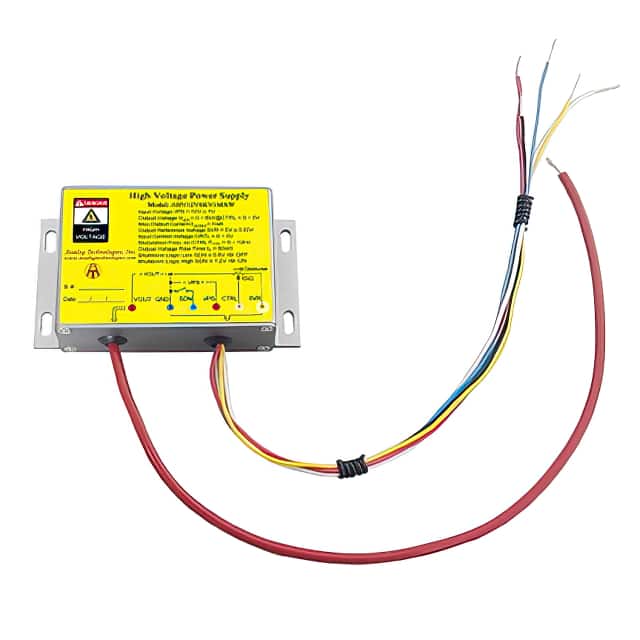

The Analog Technologies AHV24VN2KV1MAW is a high voltage DC DC converter designed for applications requiring a non-isolated power supply. It accepts an input voltage of 24V ± 1V and can deliver an output voltage from 0V to -2kV, with a maximum output current of 1mA. The unit operates within an input current range of 20mA to 120mA and features an input control voltage range of 0 to 5V.
This converter is suitable for chassis mounting and has an enclosed package type. It operates efficiently at 70% and functions within an ambient temperature range of -10°C to 55°C. The dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height.
Key electrical specifications include a reference voltage of 5V ± 0.05V and electronic shutdown control. The output voltage can be modulated via the CTRL port, which accepts a 0 to 5V input signal. This feature allows for full span modulation on the output voltage.
Applications for this power module include scientific research fields such as X-ray machines, spectral analysis, nondestructive inspection, semiconductor manufacturing equipment, and particle accelerators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage is 24V ± 1V.
The output voltage ranges from 0 to -2kV, with a maximum output current of 1mA.
The operating temperature range is -10°C to 55°C.
It supports chassis mount.
The reference voltage is 5V ± 0.05V.
The input control voltage ranges from 0 to 5V.
