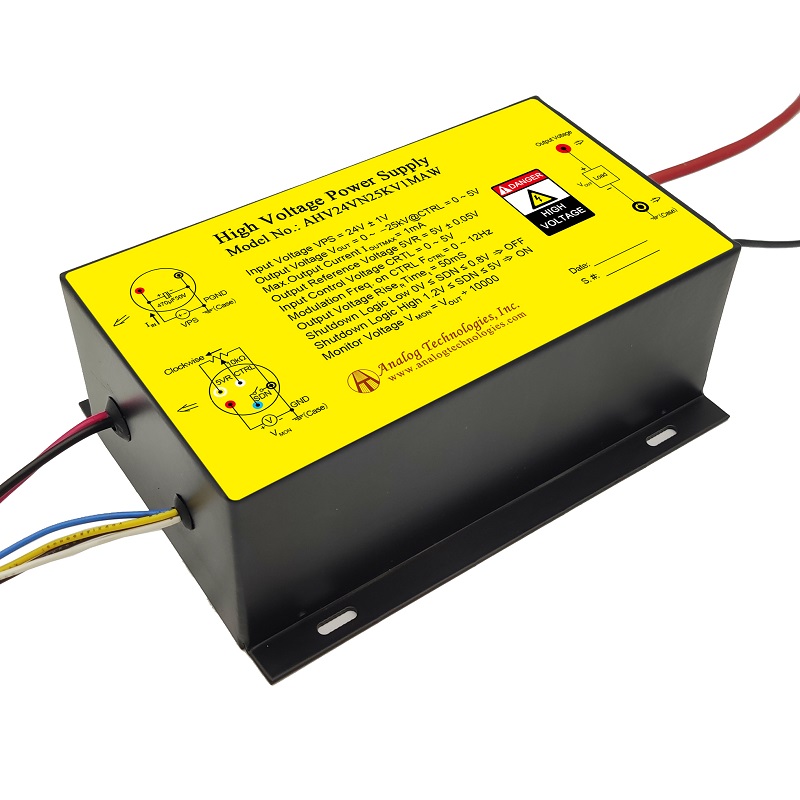

The Analog Technologies AHV24VN25KV1MAW is a high voltage DC-DC power module designed for achieving DC-DC conversion from low voltage to high voltage. It converts a 24V input to a 25kV output with high efficiency. This module is suitable for applications requiring high voltage, such as industrial measurement and control, energy spectrum analysis, and medical equipment like X-ray machines and semiconductor fabrication equipment.
The power module offers features like high precision, full modulation range on output voltage, linear regulation, and a shutdown mode. The output voltage can be monitored by measuring a dedicated port, where the measured value multiplied by 10000 equals the output voltage. The unit is housed in a heavy-duty metal enclosure that blocks EMIs, making it suitable for noise-intensive environments.
Key specifications include an input voltage range of 23-25V, a quiescent input current of 200-300mA at no load, and an output current of 1mA. The operating temperature range is -20°C to 55°C. The module has a length of 140mm, width of 100mm, and height of 55mm, with a chassis mount type and an enclosed package.
Applications for this high voltage power supply include analytical instrumentation, medical diagnostic and therapeutic systems, test equipment, and research and academic applications. It is designed for ITE (Commercial) use.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23V to 25V.
The output voltage is 25kV.
The output current is 1mA.
The operating temperature range is -20°C to 55°C.
It is a chassis mount type.
