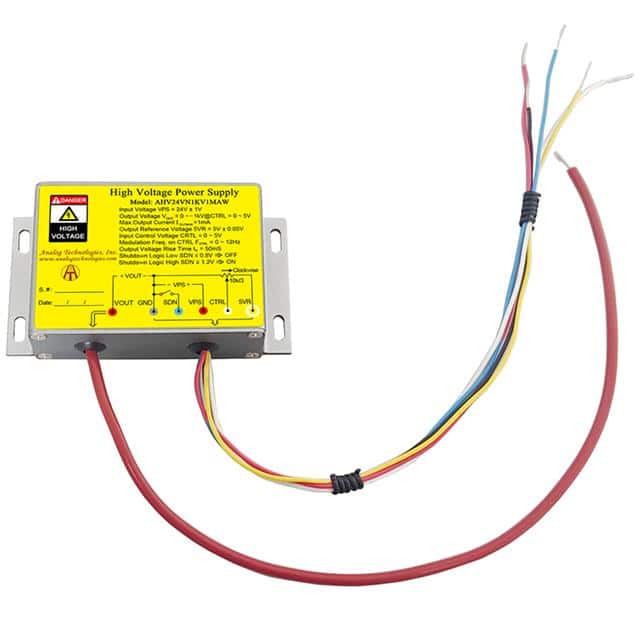

The Analog Technologies AHV24VN1KV1MAW is an enclosed, chassis mount DC DC converter designed for high voltage applications. It accepts an input power voltage of 24V ± 1V and provides an adjustable output voltage ranging from 0V to -1kV, controlled via a 0-5V input control voltage. The maximum output current is 1mA, with a reference voltage of 5V ± 0.05V. The unit operates within a temperature range of -10°C to 55°C and has an efficiency of 70%.
This power module is suitable for applications requiring DC-DC conversion from low voltage to high voltage. Its compact dimensions (104.4mm x 66.8mm x 27.9mm) and enclosed, chassis mount design facilitate integration into various systems. The module also features electronic shutdown control and is designed for zero EMI with good heat sinking provided by its metal enclosure.
Key specifications include an input current range of 30mA to 200mA and a single output. The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level (MSL) is 1, and REACH status is Unaffected, though these compliance details are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23V to 25V, with a typical value of 24V.
The maximum output voltage is -1kV, and the maximum output current is 1mA.
The dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height.
The operating temperature range is -10°C to 55°C.
It supports chassis mount.
