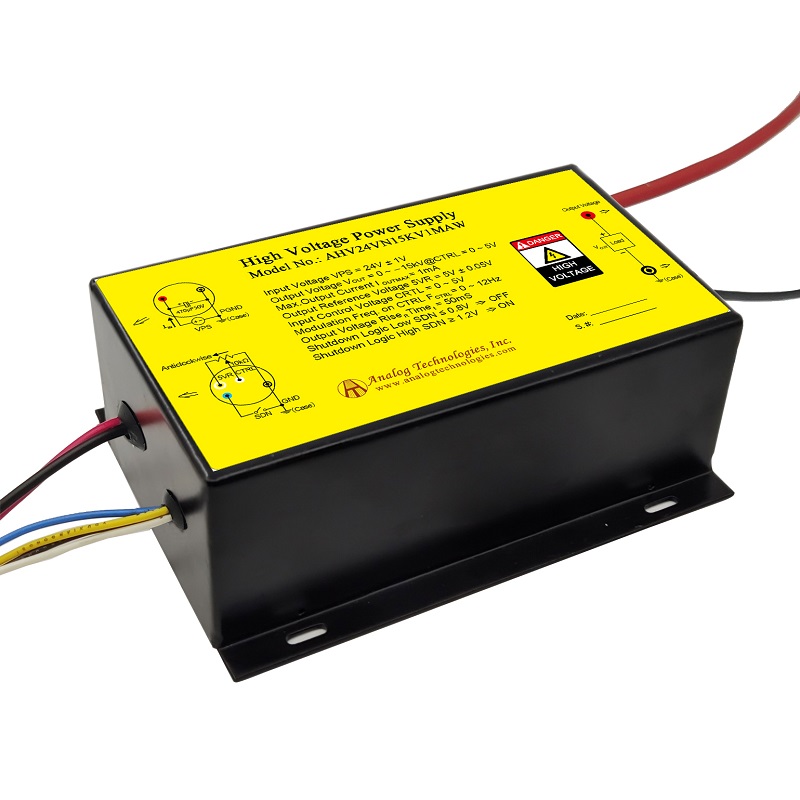

The AHV24VN15KV1MAW from Analog Technologies is an enclosed, chassis mount DC-DC converter module designed for high voltage applications. It accepts a nominal 24V input and can deliver a regulated output voltage ranging from 0 to -15kV, controlled via a 0-5V input control voltage.
Key electrical specifications include a maximum output current of 1mA, a monitor voltage output of 0-1.5V, and a reference voltage of 5V. The module operates with an efficiency of approximately 70% and features electronic shutdown control. It is designed with zero EMIs and good heat sinking due to its metal enclosure.
This power module is suitable for various industrial, scientific, and defense applications requiring high voltage DC-DC conversion. Its operating temperature range is -20°C to 55°C. The dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be set from 0 to -15kV.
The power module requires an input voltage of 24V.
The maximum output current is 1mA.
The operating temperature range is -20°C to 55°C.
Yes, it features electronic shutdown control.
Applications include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning.
