AHV24V10KV5MAW
Analog Technologies
The Analog Technologies AHV24V10KV5MAW is a DC DC converter with a 24V input and 5mA output current. It features 70% efficiency and a chassis mount type.
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

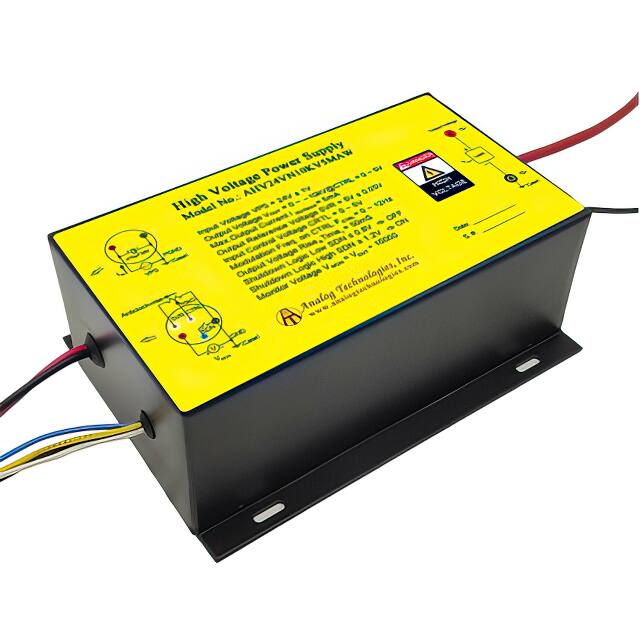

This Analog Technologies AHV24VN10KV5MAW is an enclosed DC-DC converter with a chassis mount type. It is designed for high voltage applications, converting low voltage to high voltage.
The converter features a 24V input voltage and delivers an output current of 5mA. It operates with an efficiency of 70% and has a single output. The operating temperature range is from -20°C to 55°C.
Physical dimensions include a length of 140.0mm, width of 100.0mm, and height of 55.0mm. The product is classified under the DC-DC Converters category.
Applications for this type of power module include X-ray machines, laser systems, spectral analysis, and semiconductor manufacturing equipment, among others.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage is 24V.
The output current is 5mA.
The efficiency is 70%.
The operating temperature range is -20°C to 55°C.
It is a chassis mount type.
The dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height.
