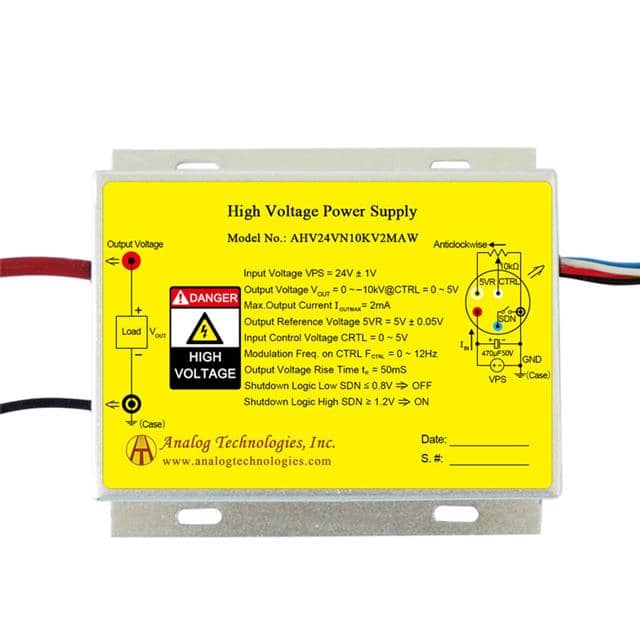

This Analog Technologies AHV24VN10KV2MAW is a high voltage DC DC converter module designed for applications requiring a conversion from low voltage to high voltage. It operates with an input voltage of 24V ± 1V and offers an adjustable output voltage ranging from 0 to -10kV, controlled via a 0-5V input control voltage. The maximum output current is limited to 2mA, with a reference voltage of 5V ± 0.05V.
Featuring an enclosed design and chassis mount, this unit is suitable for various industrial applications. It boasts an efficiency of 70% and operates within a temperature range of -20°C to 55°C. The dimensions are 100.0mm x 70.0mm x 30.0mm.
Key features include electronic shutdown control and good heat sinking due to its metal enclosure, contributing to zero EMIs. This power module is ideal for use in systems such as X-ray machines, spectral analysis equipment, semiconductor manufacturing, and particle accelerators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 24V ± 1V.
The output voltage can range from 0 to -10kV, with a maximum output current of 2mA.
The operating temperature range is -20°C to 55°C.
The dimensions are 100.0mm x 70.0mm x 30.0mm.
It supports chassis mount.
