The Analog Technologies AHV24V9KV1MAW is a high voltage, non-isolated DC DC converter module. It is designed to provide a high voltage output from a low voltage input, making it suitable for specialized applications.
The converter operates with an input voltage range of 23V to 25V, typically 24V, and accepts an input current between 125mA and 540mA. The output voltage is adjustable from 0V up to 9kV, controlled by an input control voltage ranging from 0V to 5V. The maximum output current is limited to 1mA. A reference voltage of 5V ± 0.05V is also provided.

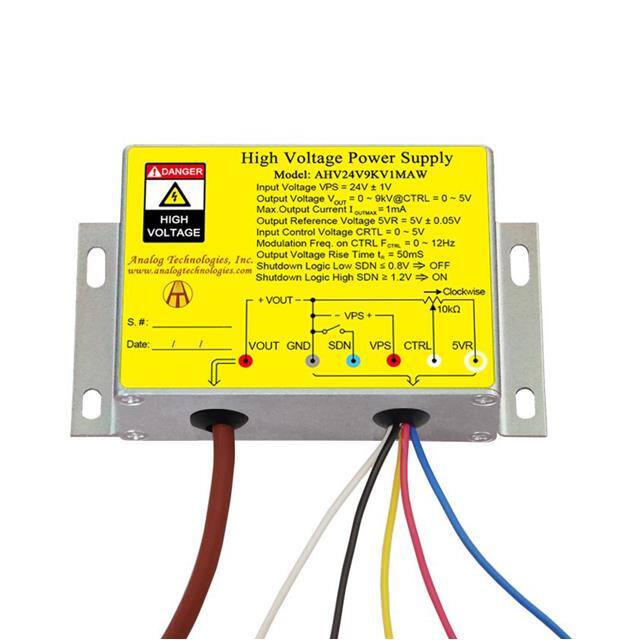

This unit features electronic shutdown control and is housed in a metal enclosure, which helps in minimizing electromagnetic interference (EMI) and provides good heat sinking. The dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height.
Applications for this power module include X-ray machines, spectral analysis, nondestructive inspection, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be set between 0V and 9kV.
The input voltage range is 23V to 25V, with a typical value of 24V.
The maximum output current is 1mA.
The dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height.
The operating temperature range is -10°C to 55°C.
