The Analog Technologies AHV24V7KV1MAW is a high voltage, non-isolated DC-DC converter module. It is designed to provide a high voltage output from a low voltage input, making it suitable for specialized scientific and industrial applications.
Key electrical specifications include an input voltage range of 23V to 25V, with a typical input voltage of 24V. The output voltage can be precisely controlled from 0V up to 7kV via an input control voltage ranging from 0V to 5V. The maximum output current is limited to 1mA, and the device offers a reference voltage of 5V ± 0.05V. The efficiency is rated at 70%.
This power module features electronic shutdown control and is housed in a metal enclosure, which provides zero EMI and good heat sinking. The operating temperature range is -10°C to 55°C.

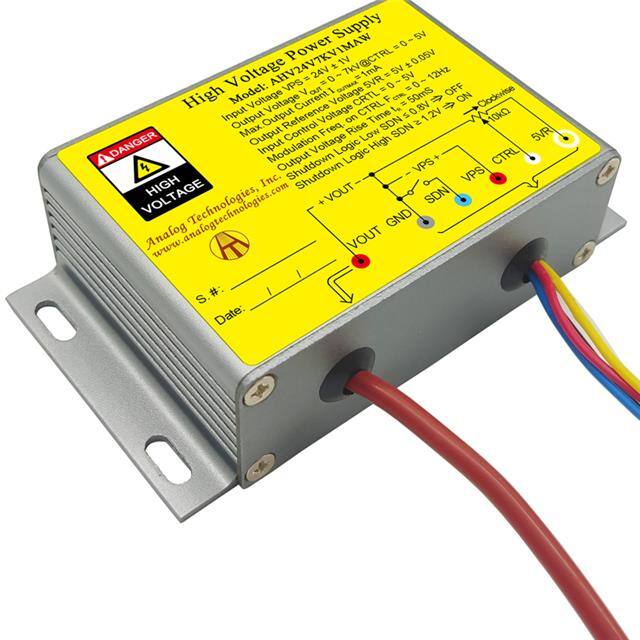

Mechanically, the AHV24V7KV1MAW has a chassis mount type and an enclosed form factor. Its dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height. This design facilitates integration into various equipment requiring high voltage power.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 7kV.
The input voltage range is 23V to 25V.
The maximum output current is 1mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
It requires chassis mounting.
Applications include X-ray machines, spectral analysis, semiconductor manufacturing equipment, CRT monitor test, and particle accelerators.
