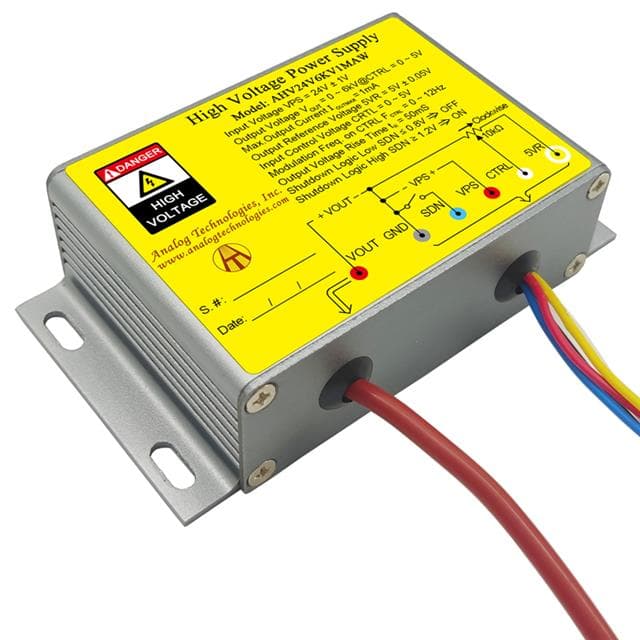

The Analog Technologies AHV24V6KV1MAW is a high voltage DC DC converter module with an enclosed, chassis mountable design. It operates with an input power voltage of 24V ± 1V and accepts an input current range from 80mA to 360mA. This converter is capable of delivering an output voltage from 0 to 6kV, with a maximum output current of 1mA. The reference voltage is 5V ± 0.05V, and the input control voltage ranges from 0 to 5V, allowing for regulation of the output.
Designed for applications requiring DC-DC conversion from low voltage to high voltage, the AHV24V6KV1MAW is suitable for use in scientific research and various industrial fields. Its operating temperature range is -10°C to 55°C. The dimensions of the unit are 104.4mm in length, 66.8mm in width, and 27.9mm in height.
Key features include electronic shutdown control and a metal enclosure that provides zero EMIs and good heat sinking. The converter has a single output and an efficiency rating of 70%. It is classified for ITE (Commercial) applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage is 24V ± 1V.
The maximum output voltage is 6kV and the maximum output current is 1mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0 to 5V.
It supports chassis mount.
