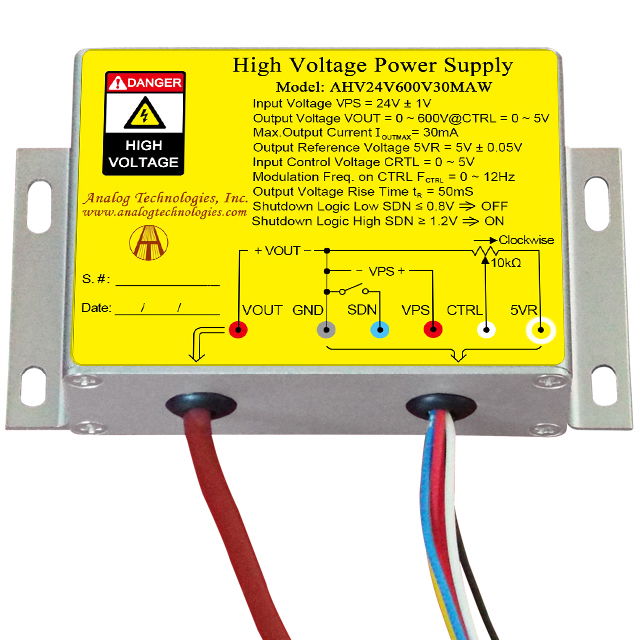

The AHV24V600V30MAW from Analog Technologies is a high voltage power supply module designed for DC-DC conversion from low voltage to high voltage. It features an input power voltage of 24V ± 1V and an input current range of 20mA to 1.4A. The output voltage can be precisely controlled from 0 to 600V using an input control voltage of 0 to 5V, with a maximum output current of 30mA. A stable 5V ± 0.05V reference voltage is also provided.
This power module is suitable for applications requiring high voltage, such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators. It offers full span modulation on the output voltage and includes an electronic shutdown control feature. The module is enclosed and designed for chassis mounting.
Key electrical specifications include an efficiency of 70% and an operating temperature range of -10°C to 55°C. The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage is 24V ± 1V.
The output voltage ranges from 0 to 600V, with a maximum output current of 30mA.
The operating temperature range is -10°C to 55°C.
The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
The efficiency is 70%.
