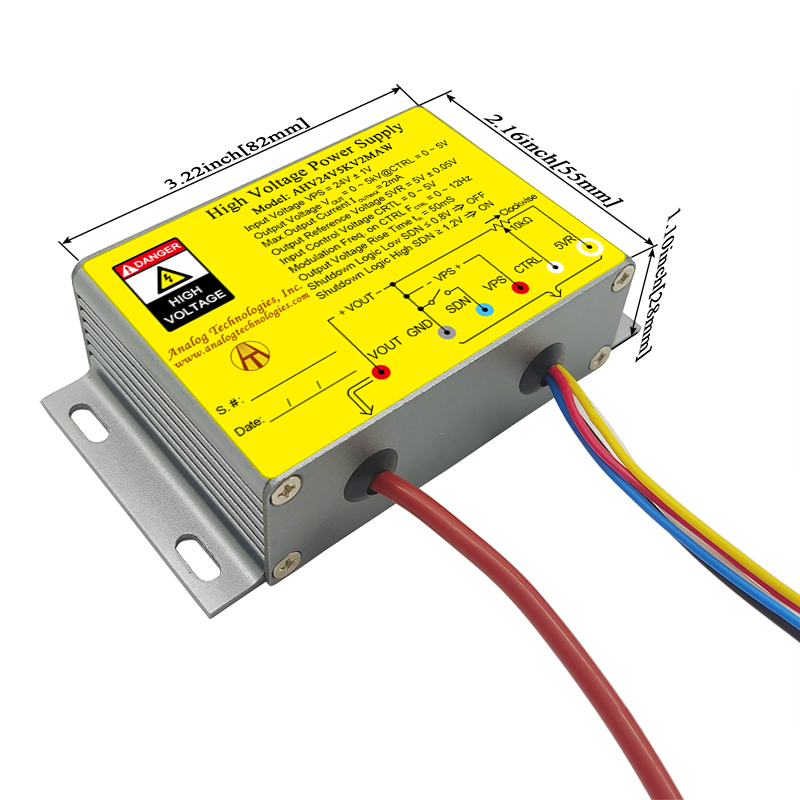

The AHV24V5KV2MAW from Analog Technologies is an enclosed, chassis mount DC-DC converter module designed for high voltage applications. It accepts an input voltage of 24V ± 1V and provides an adjustable output voltage ranging from 0 to 5kV, controlled via a 0-5V input signal. The maximum output current is limited to 2mA.
Key features include electronic shutdown control, zero EMI emissions, and good heat sinking due to its metal enclosure. The module operates within a temperature range of -10°C to 55°C. Its dimensions are 104.4mm x 59.9mm x 27.9mm.
This power module is suitable for various scientific research and industrial applications requiring high voltage DC power, such as X-ray machines, spectral analysis equipment, semiconductor manufacturing, and particle accelerators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23V to 25V with a tolerance of ±1V.
The maximum output voltage is 5kV.
The typical efficiency is 70%.
It operates between -10°C and 55°C.
It uses chassis mount mounting.
Yes, it is RoHS3 compliant.
