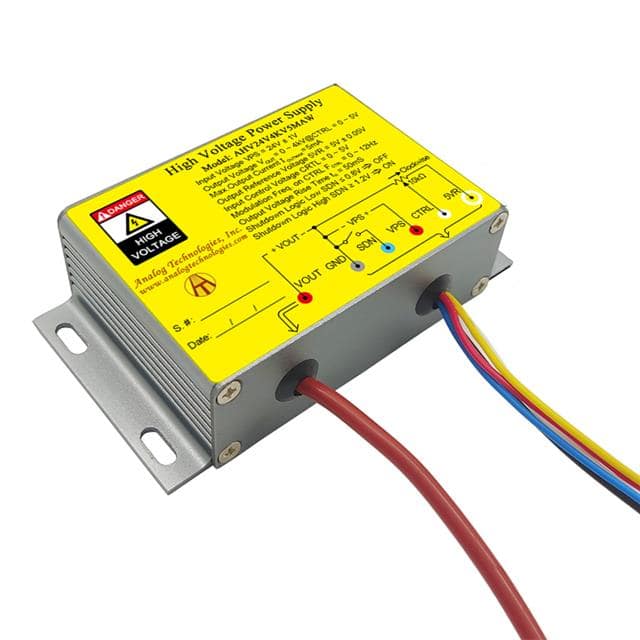

The Analog Technologies AHV24V4KV5MAW is a high voltage, non-isolated DC DC converter module. It is designed to convert a low input voltage of 24V ± 1V to a high output voltage ranging from 0 to 4kV. The output voltage can be precisely controlled via an input control voltage from 0 to 5V, allowing for full span modulation.
Key electrical specifications include a maximum output current of 5mA and an input current range of 250mA to 1.2A. The module operates with an efficiency of 70% and features electronic shutdown control. Its reference voltage is 5V ± 0.05V.
This power module is suitable for chassis mounting and comes in an enclosed package. It operates within a temperature range of -10°C to 55°C. The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
The AHV24V4KV5MAW is widely used in scientific research and various industrial fields, including X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23V to 25V, with a typical value of 24V.
The maximum output voltage is 4kV, and the maximum output current is 5mA.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
The operating temperature range is -10°C to 55°C.
The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
This DC DC converter requires chassis mounting.
