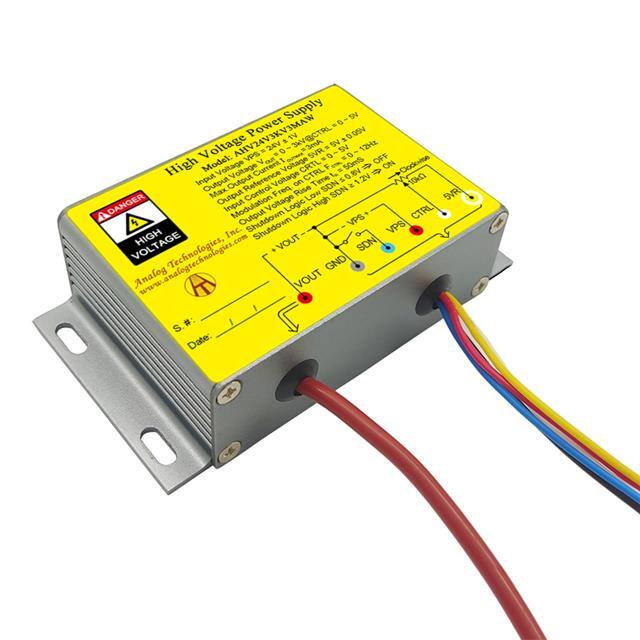

This Analog Technologies AHV24V3KV3MAW is a high voltage DC-DC converter module with an enclosed, chassis mount package. It is designed for applications requiring DC-DC conversion from low voltage to high voltage.
The module features an input power voltage of 24V ± 1V and an input control voltage range of 0 to 5V. The output voltage is adjustable from 0 to 3kV, with a maximum output current of 3mA. The reference voltage is 5V ± 0.05V. It offers electronic shutdown control and has zero EMIs with good heat sinking due to its metal enclosure.
With an efficiency of 70%, the operating temperature range is -10°C to 55°C. The dimensions are 104.4mm L x 59.9mm W x 27.9mm H. This power module is suitable for various scientific research and industrial fields.
Applications include X-ray machines, spectral analysis, nondestructive inspection, semiconductor manufacturing equipment, CRT monitor testing, particle accelerators, and radio frequency amplification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage range is 23V to 25V.
The maximum output voltage is 3kV.
The maximum output current is 3mA.
The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
The operating temperature range is -10°C to 55°C.
