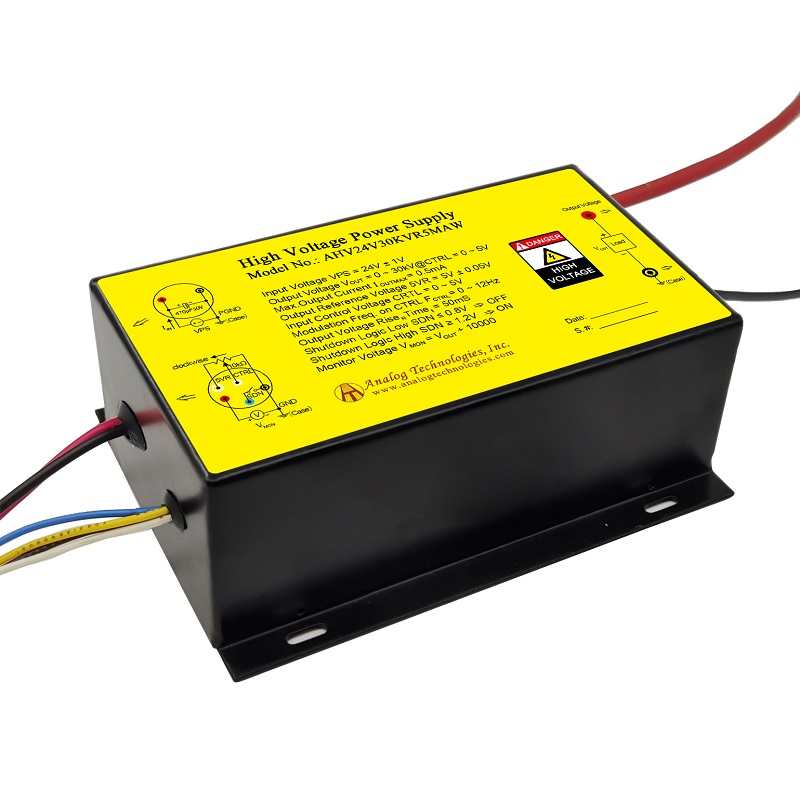

The AHV24V30KVR5MAW from Analog Technologies is a high voltage DC-DC power supply module designed for converting low input voltage to high output voltage.
Key electrical specifications include an input voltage range of 24V ± 1V, an output voltage range of 0 to 30kV controlled by a 0-5V input, and a maximum output current of 0.5mA. It also provides a monitor voltage output of 0-3V and a reference voltage of 5V ± 0.05V. The module operates with an efficiency of 70% and has an input current range of 200mA to 900mA.
This power module is suitable for various scientific research and industrial applications such as X-ray machines, spectral analysis, and semiconductor manufacturing equipment. It features full span modulation on the output voltage and electronic shutdown control.
Mechanically, the AHV24V30KVR5MAW is an enclosed unit with chassis mounting. Its dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height. The operating temperature range is from -10°C to 55°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AHV24V30KVR5MAW can deliver an output voltage of up to 30kV.
The input power voltage required is 24V ± 1V.
The maximum output current is 0.5mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0 to 5V.
This power supply uses chassis mount.
