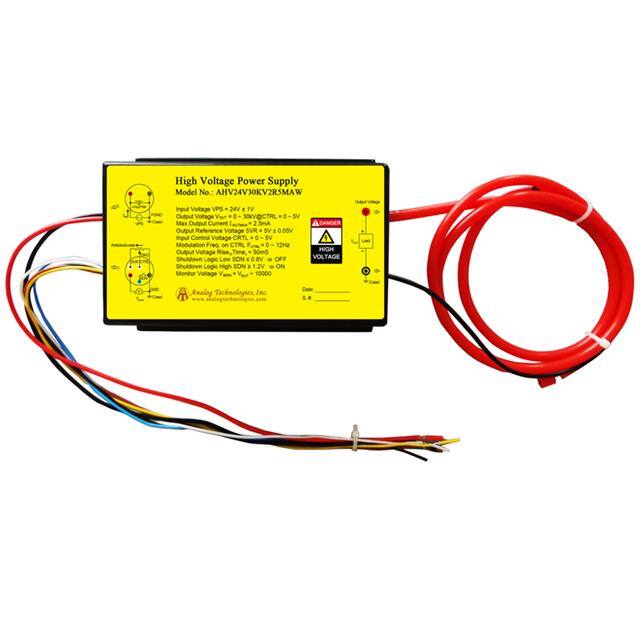

The Analog Technologies AHV24V30KV2R5MAW is a high voltage DC DC converter module designed for applications requiring conversion from low input voltages to high output voltages. It features linear regulation, providing a stable output with high precision.
This converter operates with an input voltage range of 23V to 25V, typically 24V, and delivers a high output voltage of 30kV. It has an output current capability of 2.5mA and an efficiency of 70%. The operating temperature range is from -20°C to 55°C.
The module is enclosed and designed for chassis mounting. Its dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height. The heavy-duty metal enclosure provides EMI shielding, making it suitable for noise-intensive environments.
Applications for this power module include industrial measurement and control, energy spectrum analysis, and medical equipment such as X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, and analytical instrumentation.
