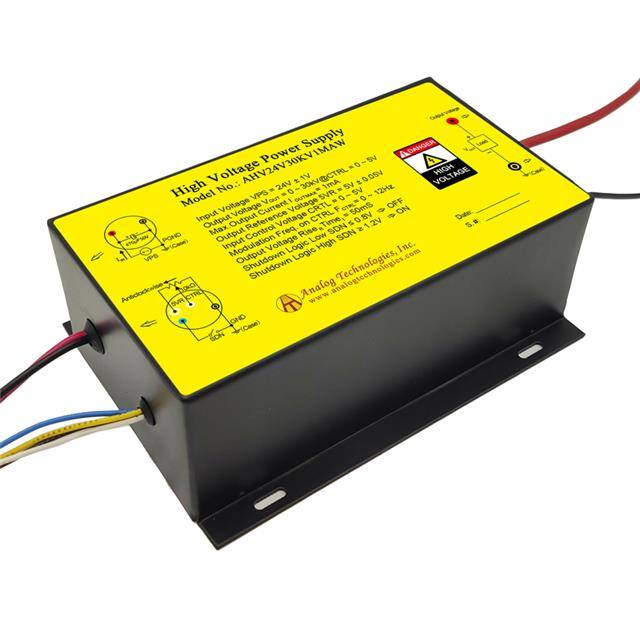

The Analog Technologies AHV24V30KV1MAW is a high voltage DC DC converter module designed for applications requiring significant voltage step-up. It operates with an input voltage of 24V ± 1V and can provide an output voltage ranging from 0 to 30kV, controlled via a 0-5V input signal.
Key electrical specifications include a maximum output current of 1mA, a monitor voltage range of 0-3V, and a reference voltage of 5V ± 0.05V. The module has an input current range of 350mA to 2.0A and an efficiency of 75%.
This enclosed converter is designed for chassis mounting and operates within a temperature range of -10°C to 55°C. Its dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height.
Applications for this power module include scientific research equipment such as X-ray machines, spectral analysis, semiconductor manufacturing, and particle accelerators.
