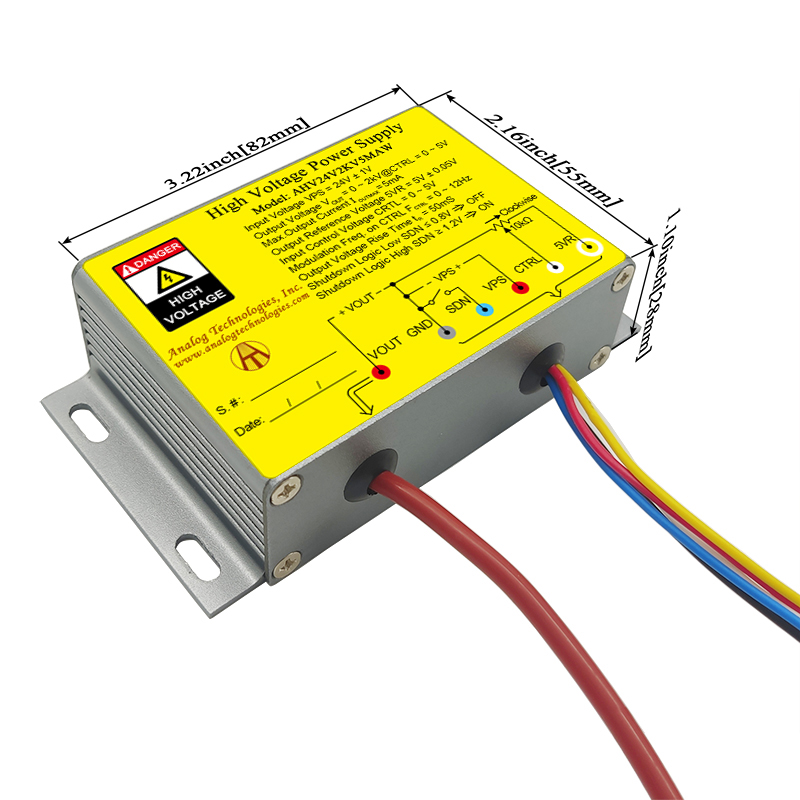

The Analog Technologies AHV24V2KV5MAW is a high voltage DC-DC converter designed for demanding applications. It accepts a 24V ± 1V input and can deliver an output voltage ranging from 0 to 2kV, controlled via a 0-5V input signal. The module features a maximum output current of 5mA and an efficiency of 70%.
Key features include full span modulation on the output voltage and electronic shutdown control, making it suitable for precise power delivery. The operating temperature range is -10°C to 55°C. This power supply is enclosed and designed for chassis mounting.
Applications for this module include scientific research, X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators. Its ability to convert low voltage to high voltage makes it a versatile component in various high-tech fields.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 24V ± 1V.
The maximum output voltage is 2kV.
The maximum output current is 5mA.
Yes, it features electronic shutdown control.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0 to 5V, and it supports full span modulation.
