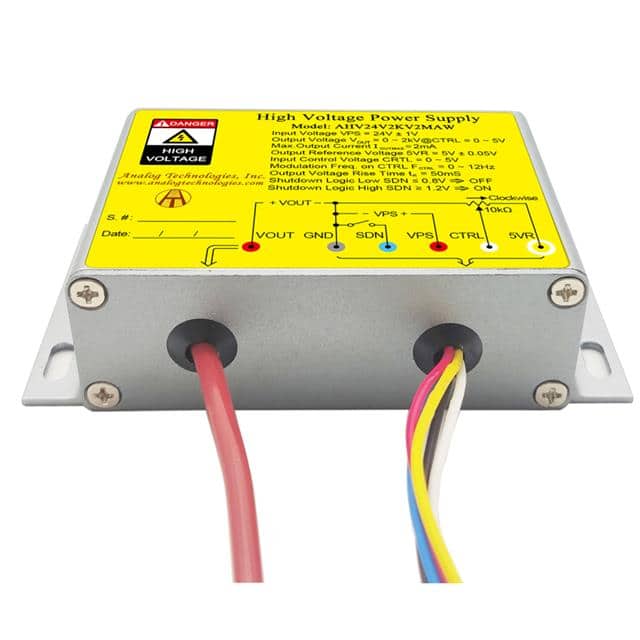

The Analog Technologies AHV24V2KV2MAW is a high voltage, non-isolated DC DC converter module. It is designed for applications requiring DC-DC conversion from low voltage to high voltage.
Key electrical specifications include an input power voltage of 24V ± 1V, an input current range of 50mA to 240mA, and a maximum output current of 2mA. The output voltage can be precisely controlled from 0 to 2kV using an input control voltage ranging from 0 to 5V, with the output voltage being 400 times the input control voltage (VOUT = 400 x VCTRL). A reference voltage of 5V ± 0.05V is also provided.
This converter operates within a temperature range of -10°C to 55°C and has an efficiency of 70%. It features electronic shutdown control and full span modulation on the output voltage. The module is enclosed and designed for chassis mounting.
Applications for the AHV24V2KV2MAW include scientific research fields such as X-ray machines, spectral analysis, nondestructive inspection, semiconductor manufacturing equipment, CRT monitor testing, particle accelerators, and more.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage is 24V ± 1V.
The maximum output voltage is 2kV and the maximum output current is 2mA.
The output voltage is controlled by an input control voltage ranging from 0 to 5V, following the relationship VOUT = 400 x VCTRL.
The operating temperature range is -10°C to 55°C.
It is a chassis mount type.
