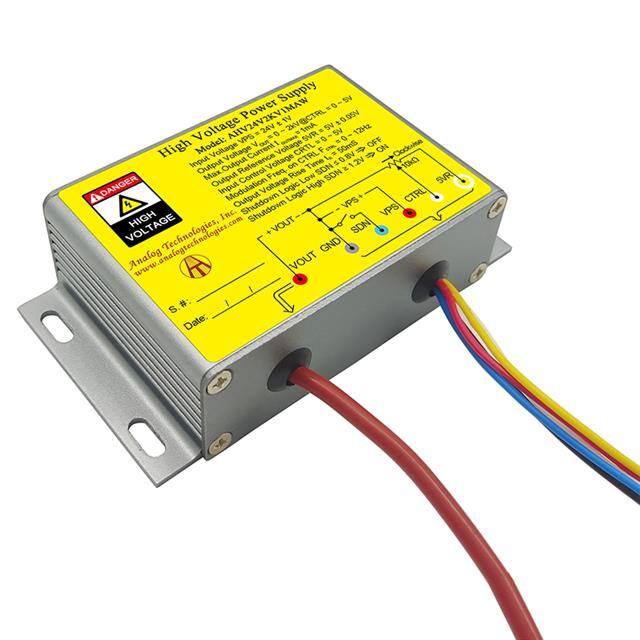

The Analog Technologies AHV24V2KV1MAW is a high-voltage, non-isolated DC-DC converter module. It is designed for applications requiring a conversion from a low input voltage to a high output voltage.
Key electrical specifications include an input voltage range of 23V to 25V with a typical value of 24V, and an input current range of 20mA to 120mA. The module can deliver a maximum output current of 1mA and offers an adjustable output voltage from 0V up to 2kV, controlled via a 0-5V input control voltage. It also features a reference voltage of 5V ± 0.05V and an electronic shutdown control.
This converter has an efficiency of 70% and operates within an ambient temperature range of -10°C to 55°C. Its physical dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height.
The AHV24V2KV1MAW is suitable for various scientific research and industrial applications, including X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23V to 25V, with a typical value of 24V.
The AHV24V2KV1MAW can provide an output voltage of up to 2kV with a maximum output current of 1mA.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
The operating temperature range is -10°C to 55°C.
The dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height.
This converter is designed for chassis mount.
