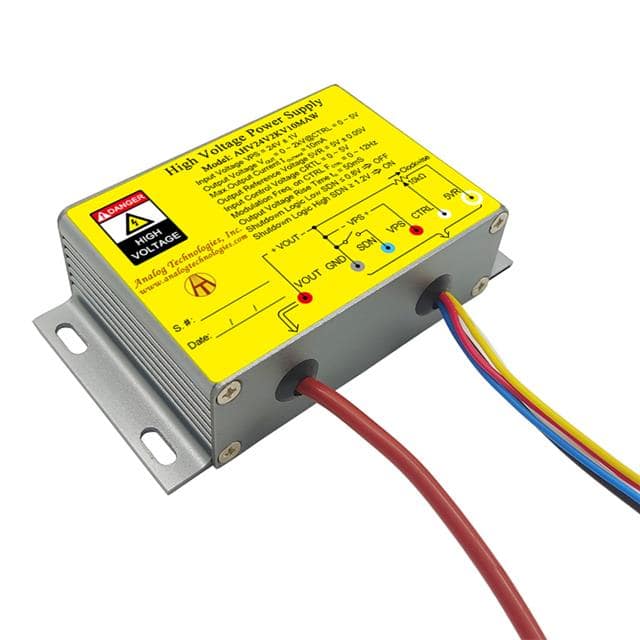

This Analog Technologies AHV24V2KV10MAW is a high voltage DC DC converter designed for applications requiring non-isolated, high voltage power. It features an enclosed form factor with chassis mounting, making it suitable for integration into various systems.
The converter accepts a nominal input voltage of 24V with a range of ±1V and an input current between 250mA and 1.2A. The output voltage is adjustable from 0V to 2kV, controlled via an input control voltage ranging from 0 to 5V. The maximum output current is limited to 10mA. A reference voltage of 5V ± 0.05V is also provided.
With an efficiency of 70%, the unit operates within an ambient temperature range of -10°C to 55°C. Its dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
Applications for this power module include scientific research fields such as X-ray machines, spectral analysis, nondestructive inspection, semiconductor manufacturing equipment, and particle accelerators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 2kV.
The input voltage range is 23V to 25V, with a nominal value of 24V.
The maximum output current is 10mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by the Input Control Voltage (CTRL) which ranges from 0 to 5V.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
