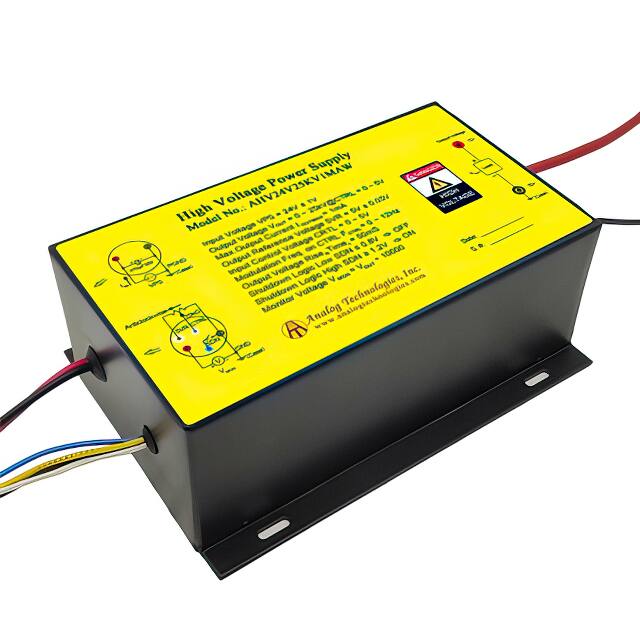

The Analog Technologies AHV24V25KV1MAW is a high voltage DC DC converter module designed for achieving DC-DC conversion from low voltage to high voltage. This enclosed, chassis mount unit operates with a nominal input voltage of 24V and delivers a high output voltage of 25kV.
Key electrical specifications include an output current of 1mA and an efficiency of 70%. The operating temperature range is -20°C to 55°C. The converter features a heavy-duty metal enclosure that shields against EMIs, making it suitable for noise-intensive environments.
Applications for this power module include industrial measurement and control, energy spectrum analysis, and medical equipment such as X-ray machines, vacuum/plasma processing, semiconductor fabrication equipment, analytical instrumentation, and test equipment. The module allows for output voltage monitoring via a dedicated port.
Physical dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 25kV.
The input voltage range is 23V to 25V.
The output current is 1mA.
The operating temperature range is -20°C to 55°C.
This DC DC converter uses chassis mount.
The dimensions are 140.0mm x 100.0mm x 55.0mm.
