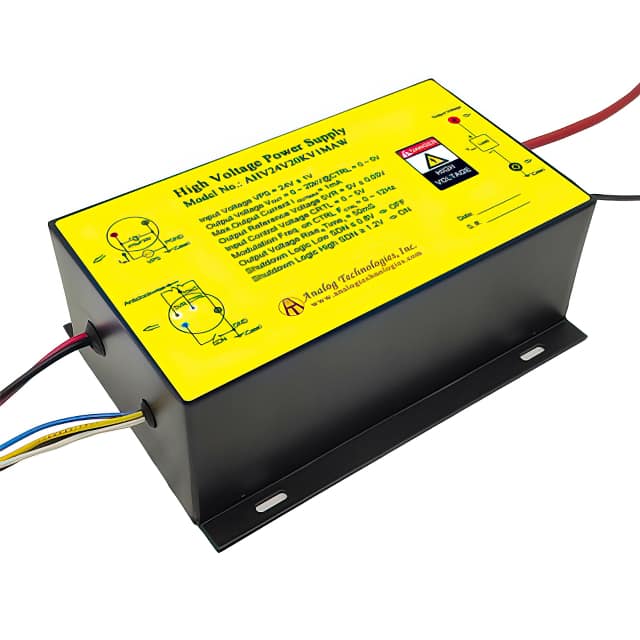

The Analog Technologies AHV24V20KV1MAW is a high voltage DC-DC converter module designed for applications requiring precise, non-isolated power conversion from a low voltage input to a high voltage output. It operates with an input power voltage of 24V ± 1V and accepts an input current range from 250mA to 1.2A.
The module offers a versatile output voltage range of 0 to 20kV, controlled via an input control voltage of 0 to 5V. It includes a monitor voltage output of 0 to 2V and a reference voltage of 5V ± 0.05V. The maximum output current is limited to 1mA. Key features include full span modulation on the output voltage and electronic shutdown control for enhanced safety and operational flexibility.
With an efficiency of 70% and an operating temperature range of -20°C to 55°C, the AHV24V20KV1MAW is suitable for various demanding environments. Its dimensions are 140.0mm x 100.0mm x 55.0mm, and it is designed for chassis mounting. The type is enclosed, providing protection for the internal components.
This power module is widely used in scientific research and industrial fields, including X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage is 24V ± 1V.
The maximum output voltage is 20kV.
The maximum output current is 1mA.
The operating temperature range is -20°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0 to 5V.
The dimensions are 140.0mm x 100.0mm x 55.0mm.
It is designed for chassis mounting.
